Ubiquiti LiteBeam LAP-120, 16dBi, 533MHz, 64MB, 25dBm, 1xGigabit, 450+Mbps, 30+ km

Κάνε μια ερώτηση
730 ημέρες
Βάρος: 4.50 kg ανά τεμάχιο
84.68

Με ΦΠΑ 105.00
+
Ογκομετρικό βάρος: 4.5kg
Διαθέσιμο για παραγγελία
Παράδοση 1 με 3 εργάσιμες

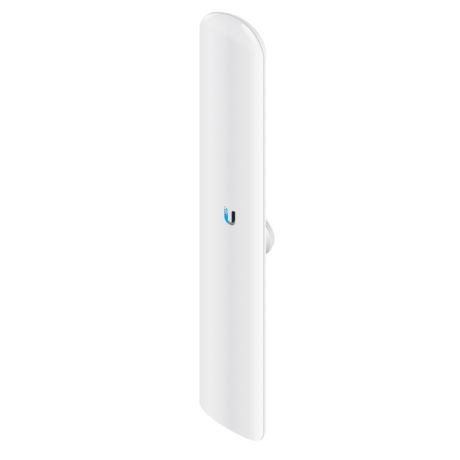

Ubiquiti LiteBeam LAP-120 is a complete radio system designed for 5GHz band working at 802.11ac standard. The LiteBeam features a unique ball joint mount that provides adjustment flexibility along three axes for versatile mounting options.

The device is equipped with integrated 25dBm radio module, 16dBi antenna and one Gigabit Ethernet port (10/100/1000Mbps). LBE-5AC-16-120 is designed to be a high performance and long range (up to 30km) device. It is powered by Passive PoE (PoE adapter included).

Technical specification

Processor

MIPS 74K

Memory

64 MB

Networking interface

1x 10/100/1000 Ethernet

Operating frequency

5150 - 5875 MHz

Max. output power

25dBm

Max. power consumption

7 W

Power method

24V, 0.3A PoE

Dimensions

(without mount) 452.3 x 78.7 x 54.4 mm

Weight

(without mount) 420 g

Wireless Approvals

FCC, IC, CE

RoHS Compliance

Tak

Operating temperature

-40 do 70 °C

Operating humidity

5 do 95% (noncondensing)

Antenna specification

Max. VSWR

1.5:1

Gain

16dBi


Σχετικά Αρχεία:

Datasheet of LiteBeam LAP-120

Part Number:
LAP-120
Availability:
available for order
