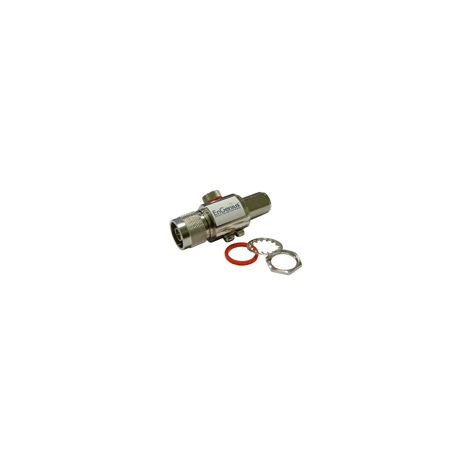

Senao/EnGenius - LP17 Lightning protector

117-0935
Κάνε μια ερώτηση
730 ημέρες
Βάρος: 0.20 kg ανά τεμάχιο
25.00

Με ΦΠΑ 31.00
+
Ογκομετρικό βάρος: 0.2kg
Διαθέσιμο για παραγγελία
Παράδοση 1 με 3 εργάσιμες

The Lightning Protector Model LP-17 is a very high-performance gas discharge tube suppressor featuring wide-band operation up to 6 GHz. The unit features a bulkhead Reverse-Polarity N Jack connector with a rubber “O”-ring seal for mounting through an enclosure wall or using the included stainless steel mounting bracket.

Due to its superior RF performance this unit is ideal for IEEE 802.11ABG and other 2.4 - 5.2 - 5.8 GHz ISM and UNII applications, as well as 3.5 GHz WLL applications. Since this protector will pass DC it is suitable for applications where DC is carried through the coax cable such as remote amplifiers and LNA's.

Both connector ports of this unit are equally protected. This provides protection no matter which way it is installed. Either port can face the antenna and either port can face the equipment.

The unit's replaceable gas tube element, multi-strike capability and fast response time make it suitable for a wide range of applications. A ground lug and terminal is provided directly on the lightning protector housing which provides superior grounding.





Specifications:



Frequency: 2 ~ 6 GHz
VSRW: 1:1.2 Max (2 ~ 6 GHz)
Insertion Loss: 0.4 dBi Max (2 ~ 6 GHz)
Impedance: 50 Ohm
Maximum Withstand Current: 200 Watts
Surge Current: 1.2 x 50us 6Kv/3Ka
Temperature: -20°C ~ +60°C
Humidity: 95% Max
Spark Voltage: DC 230 V +/- 20%
RF Power Rating (CW): 10 W Continuous
Connectors: N-Male to Bulkhead N-Female
Connector Body Material: Nickel Plated Brass
Body Material: Nickel Plated Brass
Pin Material: Gold Plated Brass
“O”-Ring Material: Rubber
Bracket Material: Stainless Steel

Dimensions (max): 64 × 50 × 23 mm

Part Number:
ODGR-SENAO-LP17-6GHZ
