MikroTik Routerboard RBSXTG2HnD, SXT 2, 10dBi 60 degrees Sector AP, 32dBm, 600MHz, 64MB, 2.4GHz, 1xGigabit,L4

001486
730 days
Weight: 0.69 kg per item
74.19
With VAT 92.00
+
Volumetric weight: 0.69kg

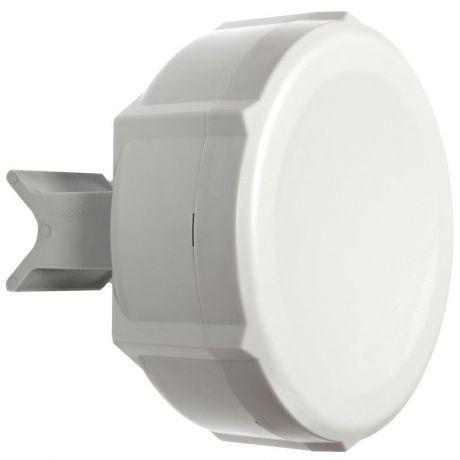

We are glad to introduce our first complete AP/CPE for 2.4GHz - SXTG2HnD! It's powerful 60 degrees 2x2 MIMO 10dbi sector antenna with 1600mW wireless on-board- you can use it as a Sector AP, to make wireless point-to-point links or as a CPE- whatever you prefer! It comes with L4 license, perfect for covering outdoor area for hotspot clients.

Unit is equipped with Gigabit Ethernet port, so customers can take full advantage of dual chain MIMO. It has the same form factor as our popular 5Ghz SXT model.

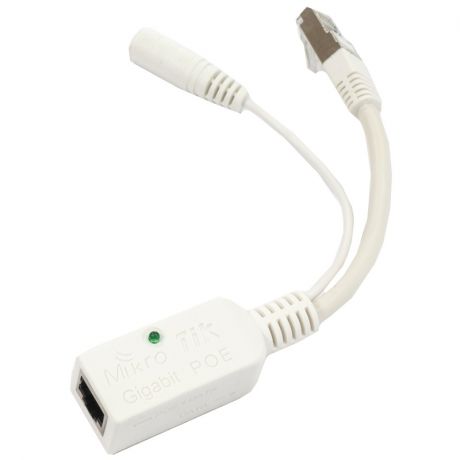

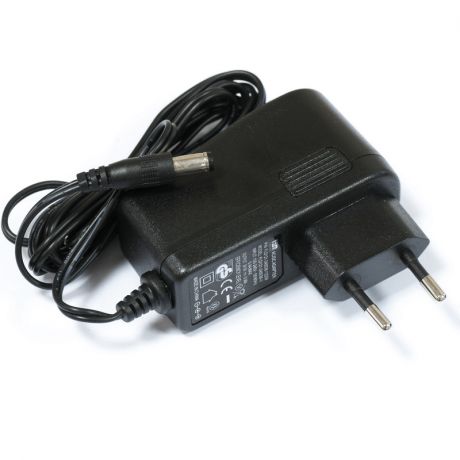

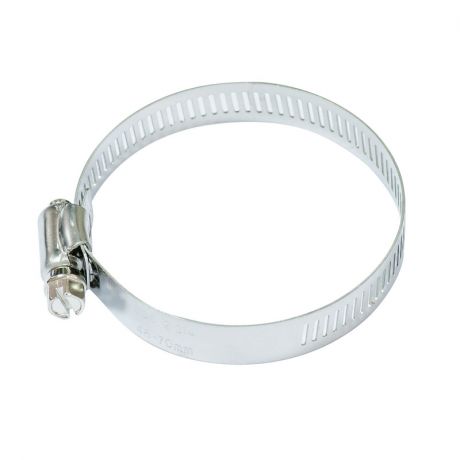

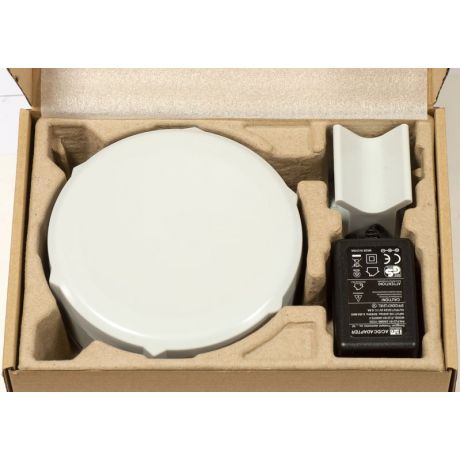

Package contains SXTG-2HnD, mounting loops, PoE injector, power adapter

Details
Product code RBSXTG2HnD
CPU nominal frequency 400 MHz
CPU core count 1
Size of RAM 32 MB
Architecture MIPS-BE
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model AR9283-AL1A
Wireless standards 802.11b/g/n
Number of USB ports 1
Power Jack 0
PoE in Yes
Voltage Monitor Yes
PCB temperature monitor Yes
CPU temperature monitor No
Dimensions 140x140x56mm
Operating System RouterOS
Operating temperature range -30C to +80C
License level 4
Antenna gain DBI 10
Current Monitor No
CPU AR7242-AH1A
Max Power consumption Up to 7W
SFP ports 0
SFP+ ports 0
USB slot type USB type A
Number of chains 2
Serial port None
RBSXTG2HnD AR7242 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 178.4 730.9 194.0 99.3
Bridging 25 bridge filter rules 51.5 625.5 52.3 214.3 53.7 27.5
Routing none (fast path) 81.2 986.1 167.0 684.0 183.7 94.1
Routing 25 simple queues 81.2 986.1 88.5 362.4 92.8 47.5
Routing 25 ip filter rules 37.6 457.0 38.4 157.1 37.5 19.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
002090
Available with order
Delivery on 4 - 7 Days
16.25  With VAT 20.15
Part Number:
RBSXTG2HnD
Supplier:
MikroTik
LAN 10/100 ports:
LAN 10/100 ports: none
Gigabit Ports:
Gigabit Ports: 1
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
MiniPCI: none
Antenna Chains:
Antenna Chains: 2
CPU:
CPU: AR9344
Wireless Chip Model:
Wireless Chip Model: AR9344
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence Level: Level4
USB:
  • USB: No
Memory cards:
  • Memory cards: No
Integrated Wireless:
  • Integrated Wireless: Yes
Voltage Monitor:
  • Voltage Monitor: Yes
Temperature sensor:
  • Temperature sensor: Yes
Serial Port:
  • Serial Port: No
PoE out:
  • PoE out: No
Wireless standards:
  • Wireless standards: 802.11b
  • Wireless standards: 802.11g
  • Wireless standards: 802.11n
