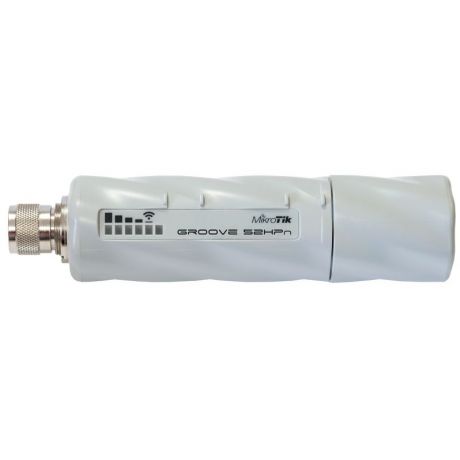

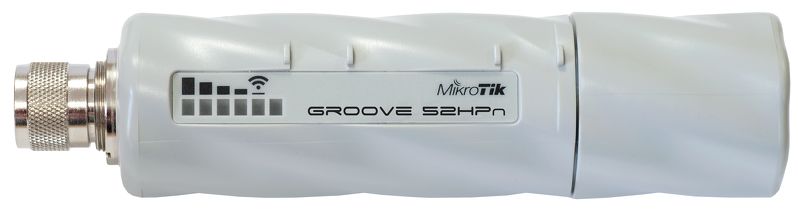

MikroTik Routerboard RBGrooveA-52HPn, 27dBm, 600MHz, 64MB, 2GHz/5GHz, 1xEthernet, L4 + 6dBi Omni

000025
Ask a question
730 days
Weight: 0.50 kg per item
72.58

With VAT 90.00
+
Volumetric weight: 0.5kg

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high 500mW output power! GrooveA has also supports AP mode.

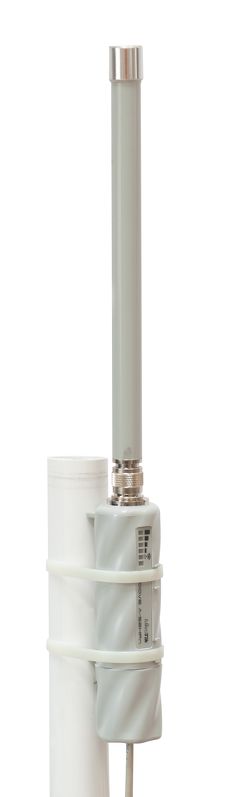

With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

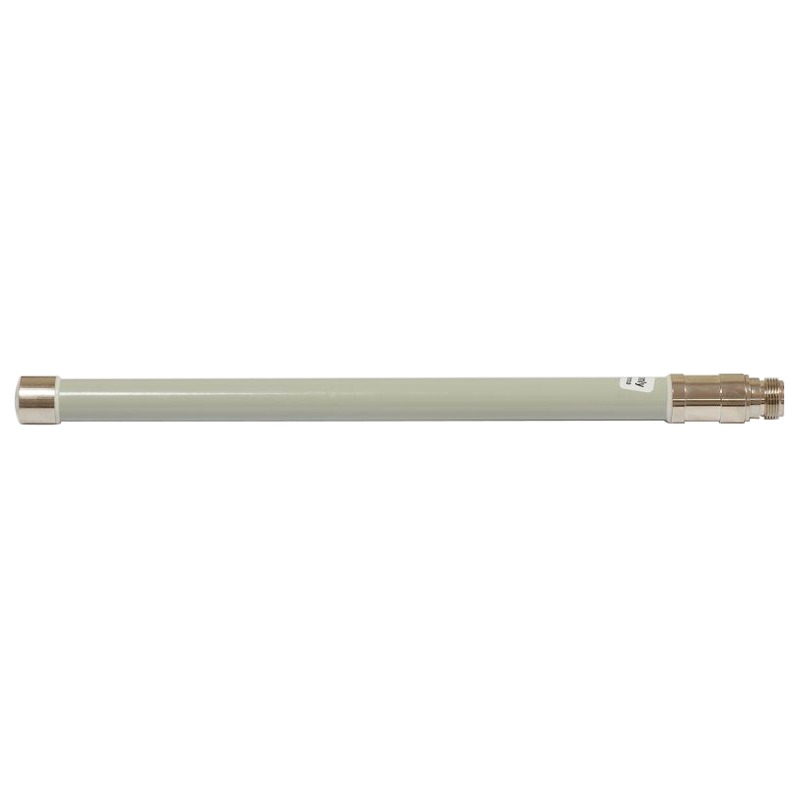

NEW- now comes packaged with a 2GHz/5GHz 6dBi Omni antena!

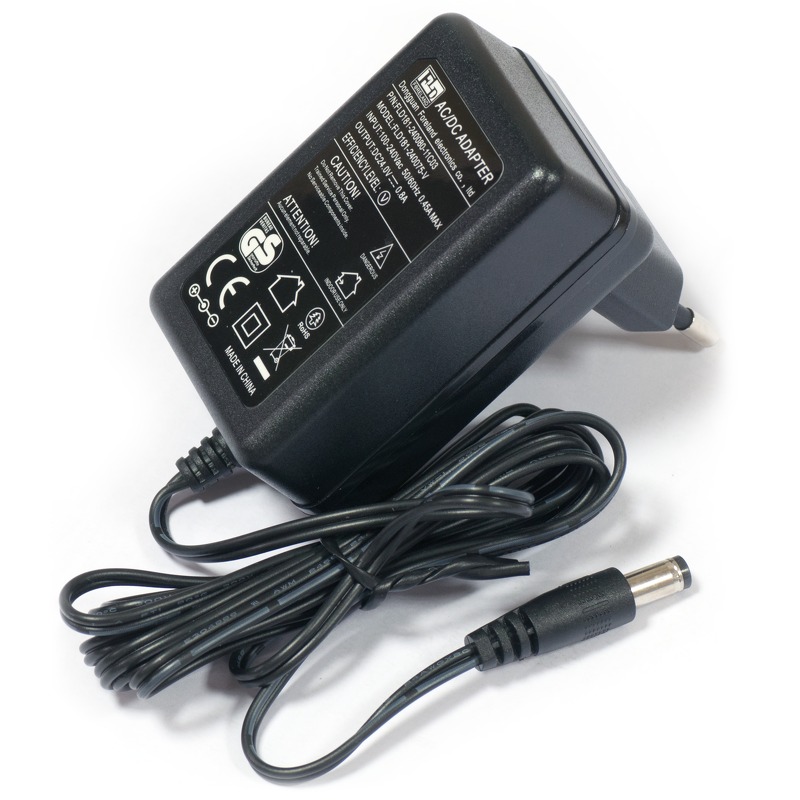

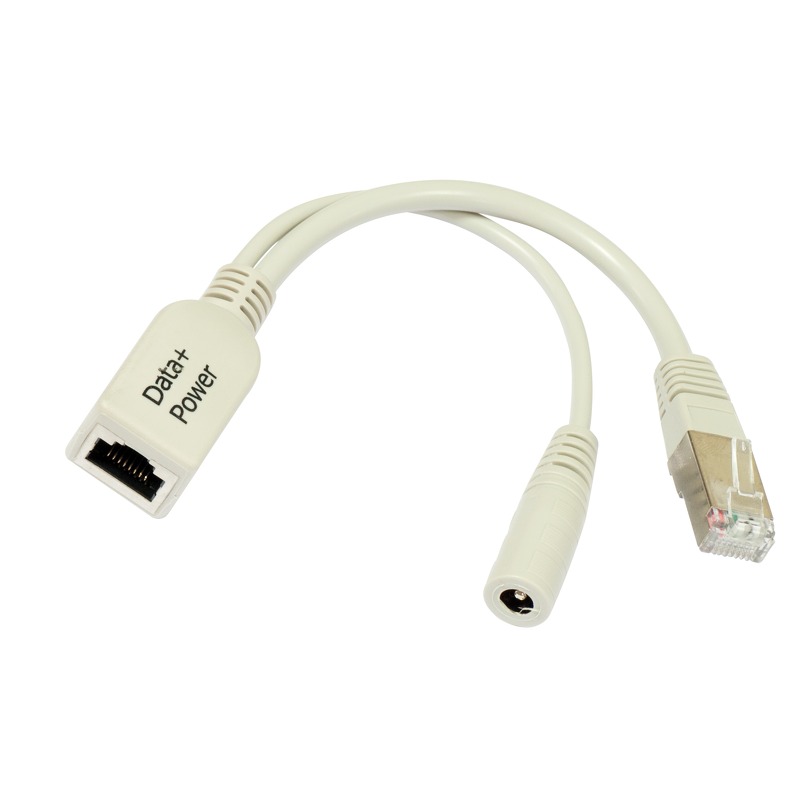

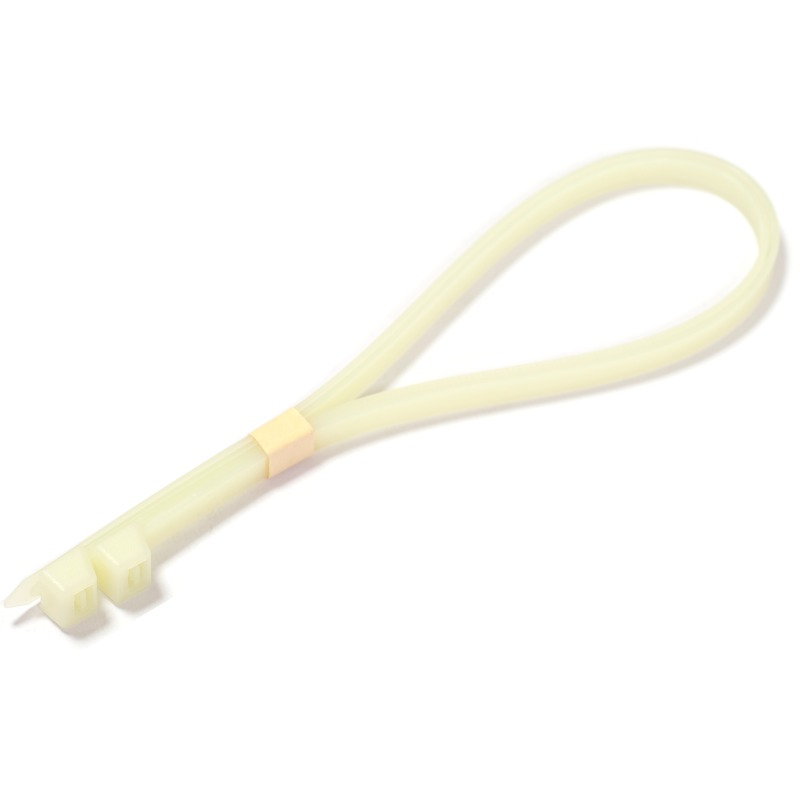

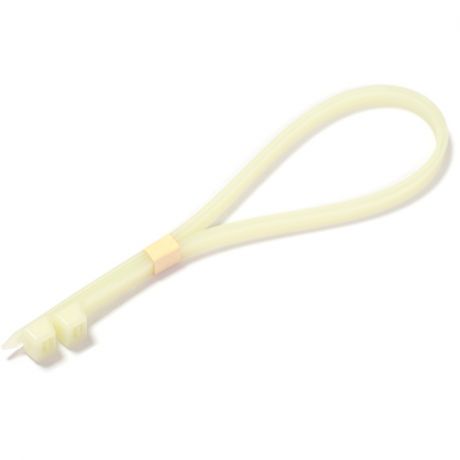

Included parts: Groove unit, mounting loops, PoE injector, power adapter, 6dBi 2.4/5Ghz Omni antenna

Details
Product code RBGrooveA-52HPn
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
10/100 Ethernet ports 1
10/100/1000 Ethernet ports 0
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model AR9342-BL1A
Wireless standards 802.11a/b/g/n
Number of USB ports 0
Power Jack 0
PoE out No
PoE in Yes
Supported input voltage 9 V - 30 V
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 177x44x44mm, 193g
Operating System RouterOS
Operating temperature range -30C to +70C
License level 4
Antenna gain DBI 6
Current Monitor No
CPU AR9342-BL1A
Max Power consumption Up to 0.19A at 24V (4.56W)
SFP ports 0
SFP+ ports 0
Number of chains 1
Serial port None
RBGrooveA-52HPn AR9342 100M 1 port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 87.6 44.9
Routing none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8
Routing 25 simple queues 8.1 98.4 23.5 96.3 106.6 54.6
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 60.5 31.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RBGrooveA-52HPn
Supplier:
MikroTik
