Ubiquiti B-DB-AC, Bullet Dual Band AC, 22dBm,160+Mbps @ 2.4GHz & 22dBm, 300+Mbps @ 5GHz, 1xGigabit

003315
Κάνε μια ερώτηση
730 ημέρες
Βάρος: 0.20 kg ανά τεμάχιο
91.93

Με ΦΠΑ 113.99
+
Ογκομετρικό βάρος: 0.2kg
Διαθέσιμο για παραγγελία
Παράδοση 1 με 3 εργάσιμες

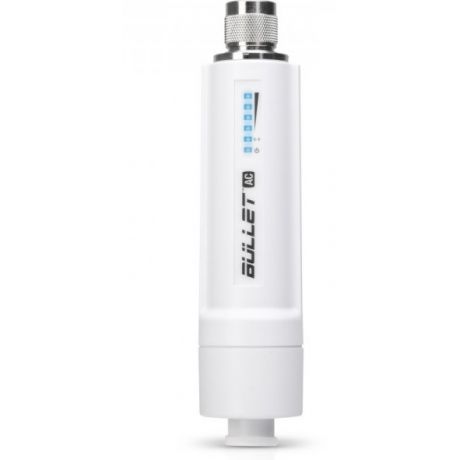

Bullet AC (B-DB-AC)

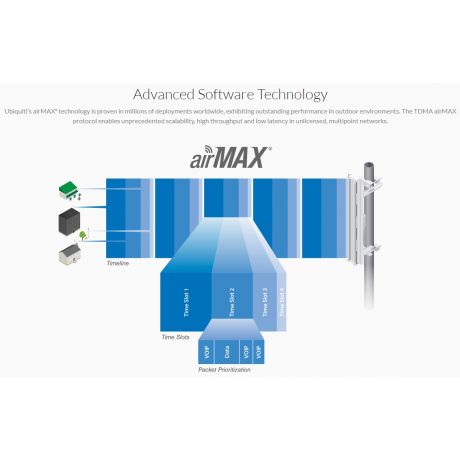

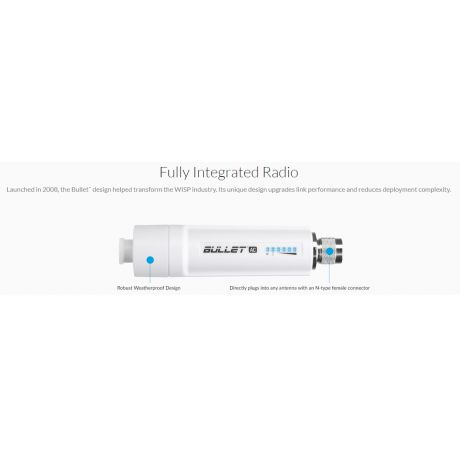

Ubiquiti Networks designed airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Bulletâ„¢ AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).  Zero-Variable Deployment  The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet AC, operators can just plug and go.  Software airOS 8  airOS 8 is the revolutionary operating system for Ubiquiti® airMAX ac products. Powerful Wireless Features:

  • Access Point PtMP airMAX Mixed Mode
  • airMAX ac Protocol Support
  • Long-Range Point-to-Point (PtP) Selectable Channel Width
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
  • Automatic Channel Selection
  • Transmit Power Control: Automatic/Manual
  • Automatic Distance Selection (ACK Timing)

The most important features:

  • Radio 22dBm, 2.4GHz or 5GHz, 802.11 AC
  • Gigabit Ethernet port
  • Power supply - passive PoE 24V
  • N-male connector

Technical Specifications

Dimensions

190 x 46 mm (7.48 x 1.81")

Weight

196 g (6.91 oz)

Enclosure

Powder-Coated Aluminum

Networking Interface

1x Gigabit Ethernet

Antenna Connector

N-Type Connector

LEDs

Power, Ethernet, (4) Signal Strength

Throughput

2.4 GHz - 160+ Mbps  5 GHz - 300+ Mbps

Operating Frequency (MHz)

USA: 2412 - 2462, 5725 - 5850  Worldwide 2412 - 2472, 5150 - 5875

Max. Power Consumption

8W

Output Power

22 dBm

Power Method

24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

ESD/EMP Protection

± 24 kV Contact / Air

Operating Temperature

-40 to 70°C

Operating Humidity

5 to 95%, no condensing

Certifications

CE, FCC, IC

Part Number:
B-DB-AC
