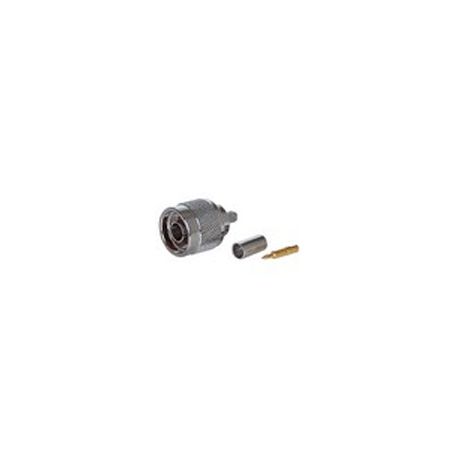

N Male Crimp connector for 195, RG-58 series cable

117-0332
Ask a question
730 days
Weight: 0.03 kg per item
2.00

With VAT 2.48
+
Volumetric weight: 0.03kg

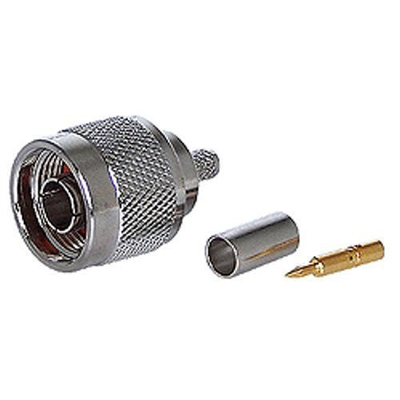

N Male Crimp connector for 195, RG58 series cable

N Series coaxial connectors are medium-sized, threaded coupling connectors designed for use from DC to 11 GHz.
Their consistently low broadband VSWR have made them popular over the years in many applications.
The N series connector is impedance matched to 50 ohm cables.





Materials/Finish :
Body Brass

Nickel

Center Pin Bronze Gold
Crimp Tube Annealed Copper Nickel
Dielectric Teflon n/a



Specifications :
Impedance 50 ohm
Frequency Range 0 to 11.0 GHz
VSWR 1.3 max
Working Voltage 1,000 volts rms max at sea level
Dielectric Withstanding Voltage 2,500 volts rms max at sea level
ContactResistance center contact=1.0 Milliohms max
outer contact=1.0 Milliohms max
Insertion Loss 0.3 dB max at 10 GHz
Insulation Resistance 5,000 Megohms min



Connector
Female thread
Male center pin
Part Number:
EZ-NMC195
