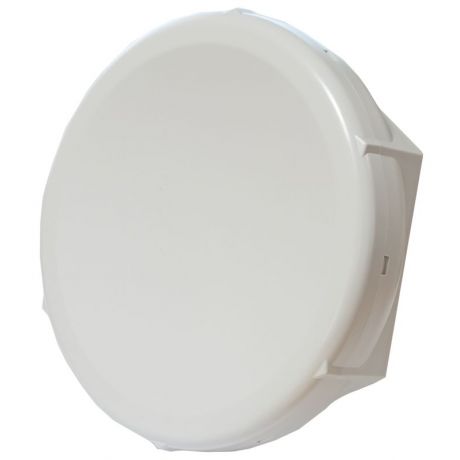

The SEXTANT is a 18dBi 5GHz antenna with a built in RB911G router. It has two polarizations to give you all benefits of 2x2 MIMO in 802.11n.
Inside is the high power RB911 dual chain wireless device, with high performance, high output power, and a Gigabit Ethernet port, to fully
utilize the benefit of 802.11n high speed wireless.
Easy to use and quick to deploy, SEXTANT is ideal for point to point links.

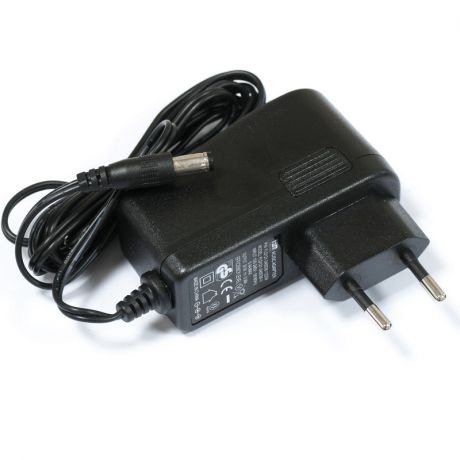

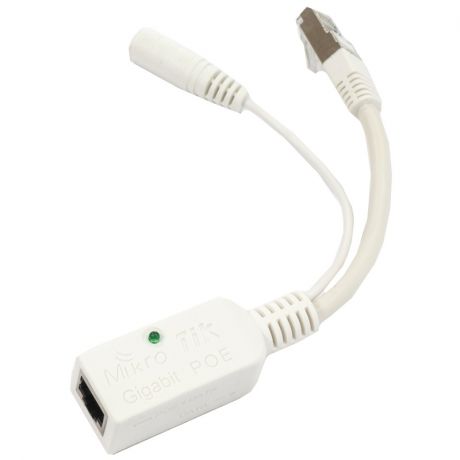

Included parts: SEXTANTG5PHnD, mounting kit, PoE injector, power adapter
| Details | |
|---|---|
| Product code | RBSEXTANTG5HPnD |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 32 MB |
| 10/100 Ethernet ports | 0 |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Wireless chip model | AR9342-BL1A |
| Wireless standards | 802.11a/n |
| Number of USB ports | 0 |
| Power Jack | 0 |
| PoE in | Yes |
| Voltage Monitor | No |
| PCB temperature monitor | No |
| CPU temperature monitor | No |
| Dimensions | Ø250mm, height 90mm, 830g |
| Operating System | RouterOS |
| Operating temperature range | -30C to +70C |
| Antenna gain DBI | 18 |
| Current Monitor | No |
| CPU | AR9342-BL1A |
| Max Power consumption | 11W |
| SFP ports | 0 |
| SFP+ ports | 0 |
| Number of chains | 2 |
| Serial port | None |
| RBSEXTANTG5HPnD | AR9342 1G 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
Part Number:
RBSEXTANTG5HPnD
Supplier:
MikroTik
LAN 10/100 ports:
LAN 10/100 ports: none
Gigabit Ports:
Gigabit Ports: 1
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
MiniPCI: none
Antenna Chains:
Antenna Chains: 2
CPU:
CPU: AR9342
Wireless Chip Model:
Wireless Chip Model: AR9342
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence Level: Level3
USB:
- USB: No
Memory cards:
- Memory cards: No
Integrated Wireless:
- Integrated Wireless: Yes
Voltage Monitor:
- Voltage Monitor: No
Temperature sensor:
- Temperature sensor: No
Serial Port:
- Serial Port: No
PoE out:
- PoE out: No
Wireless standards:
- Wireless standards: 802.11a
- Wireless standards: 802.11n
