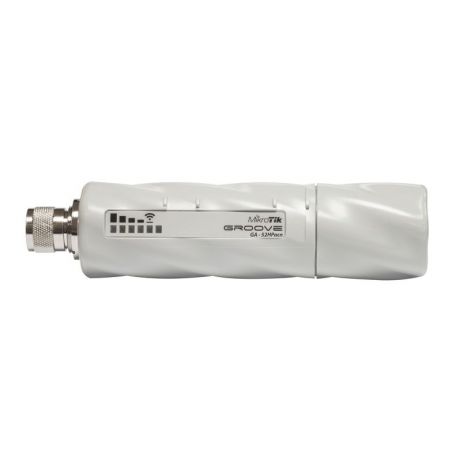

MikroTik Routerboard RBGrooveGA-52HPacn, 24dBm, 6dBi @ 2.4GHz, 26Bm, 8dBi @ 5GHz, 720MHz, 64MB, 1xGigabit, L4, + Dual-Band Omni

002572
730 days
Weight: 1.00 kg per item
79.80
With VAT 98.95
+
Volumetric weight: 1kg

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS.

Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilise the full benefit of 802.11ac high speed wireless.

The Groove A (AP model) comes with Level 4 license and includes a Dual Band 2.4/5GHz Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz), so you can use the unit right out of the box, or use your own antenna.



Product specifications

Details
Product code RBGrooveGA-52HPacn
CPU nominal frequency 720 MHz
Size of RAM 64 MB
10/100/1000 Ethernet ports 1
Wireless chip model QCA-9889
Wireless standards 802.11a/b/g/n/ac
PoE in Yes
Supported input voltage 10 V - 30 V
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 177 x 44 x 44 mm
Operating System RouterOS
Tested ambient temperature -40 +70 C
License level 4
CPU QCA9556
Max Power consumption 5W
Number of chains 1
Storage type FLASH
Storage size 16 MB

Wireless specifications

2.4 GHz
 TXRX
1MBit/s 24 -97
11MBit/s 21 -91
6MBit/s 24 -93
54MBit/s 21 -77
MCS0 24 -93
MCS7 20 -72
5 GHz
 TXRX
6MBit/s 26 -93
54MBit/s 21 -78
MCS0 26 -93
MCS7 21 -74
MCS9 19 -69

wireless parameters may be limited in software, depending on your local regulatory limitations

Performance test results

RBGrooveGA-52HPacn QCA9556 1G one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 233.1 954.8 576.7 295.3
Bridging 25 bridge filter rules 81.2 986.1 123.7 506.7 117.8 60.3
Routing none (fast path) 81.2 986.1 233.1 954.8 454.8 232.9
Routing 25 simple queues 81.2 986.1 152.6 625.0 137.2 70.2
Routing 25 ip filter rules 69.4 842.8 66.3 271.6 68.7 35.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RBGrooveGA-52HPacn
Supplier:
MikroTik
LAN 10/100 ports:
LAN 10/100 ports: none
Gigabit Ports:
Gigabit Ports: 1
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
MiniPCI: none
Antenna Chains:
Antenna Chains: 1
CPU:
CPU: QCA9556
Wireless Chip Model:
Wireless Chip Model: QCA9889
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence Level: Level4
USB:
  • USB: No
Memory cards:
  • Memory cards: No
Integrated Wireless:
  • Integrated Wireless: Yes
Voltage Monitor:
  • Voltage Monitor: Yes
Temperature sensor:
  • Temperature sensor: Yes
Serial Port:
  • Serial Port: No
PoE out:
  • PoE out: No
Wireless standards:
  • Wireless standards: 802.11ac
  • Wireless standards: 802.11a
  • Wireless standards: 802.11b
  • Wireless standards: 802.11g
  • Wireless standards: 802.11n
