MikroTik Routerboard RB911G-5HPacD-NB, NetBox 5, 31dBm, 720MHz, 128MB, 5GHz ac, 1xGigabit, 2xRPSMA, L4

002891
730 days
Weight: 1.00 kg per item
91.90
With VAT 113.96
+
Volumetric weight: 1kg

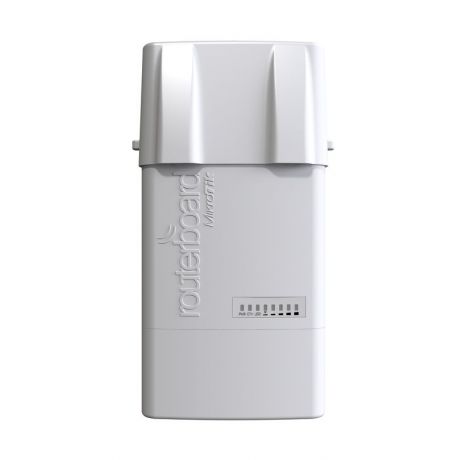

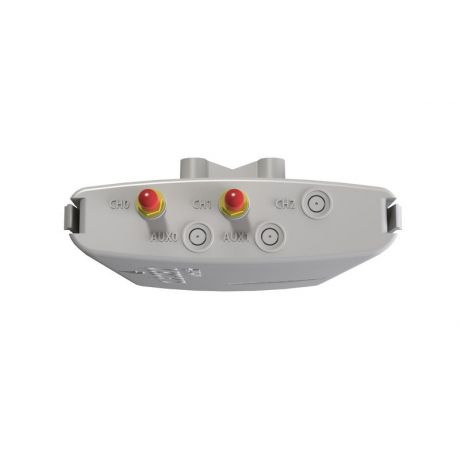

The NetBox is a dual chain outdoor client device with RP-SMA connectors for antennas, and a cable hood for protection against moisture. This device supports the new 802.11ac standard for increased wireless speed (866Mbit datarate, and 20/40/80MHz channels).

The case can be opened with one hand, and is protected against the elements. Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

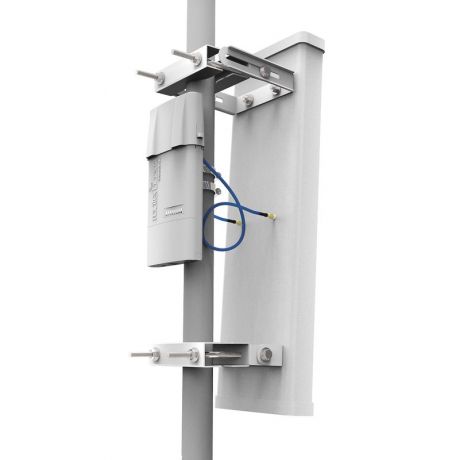

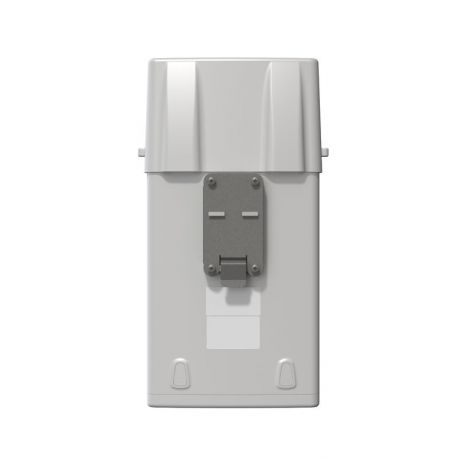

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.

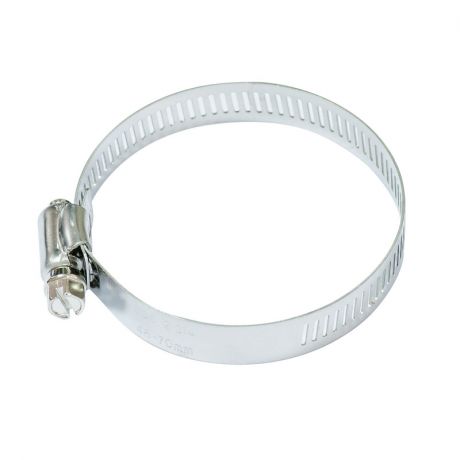

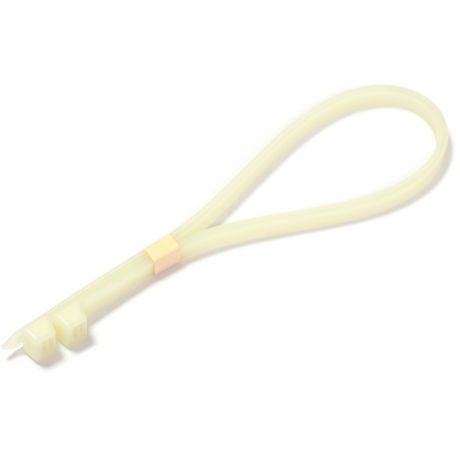

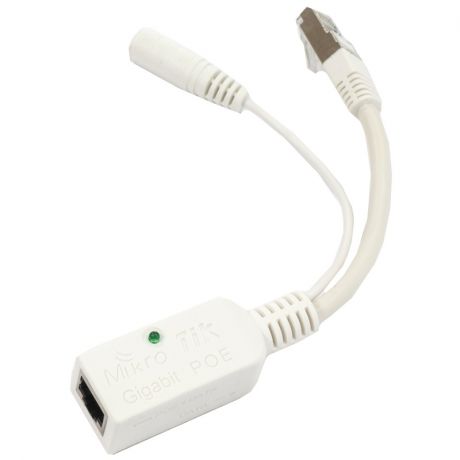

Included parts: Gigabit PoE injector, DIN mount (K-27), Metal ring (one), 24V 0.8A power adapter, Plastic zip tie

Details
Product code RB911G-5HPacD-NB
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11a/n/ac
Number of USB ports 0
Power Jack 0
Supported input voltage 8 V - 30 V
PoE in Yes
PoE out No
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
License level 4
Antenna gain DBI No
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 11.5W
SFP ports None
SFP+ ports None
Number of chains 2
Serial port None

Wireless specifications

5 GHz
 TXRX
6MBit/s 31 -96
54MBit/s 27 -81
MCS0 30 -96
MCS7 27 -77
MCS9 22 -72

wireless parameters may be limited in software, depending on your local regulatory limitations

RB911G-5HPacD-NB QCA9550 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 162.4 1,972.2 170.8 699.6 370.2 189.5
Bridging 25 bridge filter rules 162.4 1,972.2 111.8 457.9 99.9 51.1
Routing none (fast path) 162.4 1,972.2 317.4 1,300.1 370.2 189.5
Routing 25 simple queues 162.4 1,972.2 174.2 713.5 176.2 90.2
Routing 25 ip filter rules 60.2 731.1 62.8 257.2 61.8 31.6
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RB911G-5HPacD-NB
Supplier:
MikroTik
LAN 10/100 ports:
LAN 10/100 ports: none
Gigabit Ports:
Gigabit Ports: 1
SFP 1G Ports:
SFP 1G Ports: none
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
MiniPCI: none
Antenna Chains:
Antenna Chains: 2
CPU:
CPU: QCA9557
Wireless Chip Model:
Wireless Chip Model: QCA9882
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence Level: Level4
USB:
  • USB: No
Memory cards:
  • Memory cards: No
Integrated Wireless:
  • Integrated Wireless: Yes
Voltage Monitor:
  • Voltage Monitor: Yes
Temperature sensor:
  • Temperature sensor: Yes
Serial Port:
  • Serial Port: No
PoE out:
  • PoE out: No
Wireless standards:
  • Wireless standards: 802.11ac
  • Wireless standards: 802.11a
  • Wireless standards: 802.11n
