MikroTik Routerboard GrooveG-52HPacn, 24dBm @ 2.4GHz, 26Bm @ 5GHz, 720MHz, 64MB, 1xGigabit, L3

002890
730 days
Weight: 0.24 kg per item
68.50
With VAT 84.94
+
Volumetric weight: 0.24kg

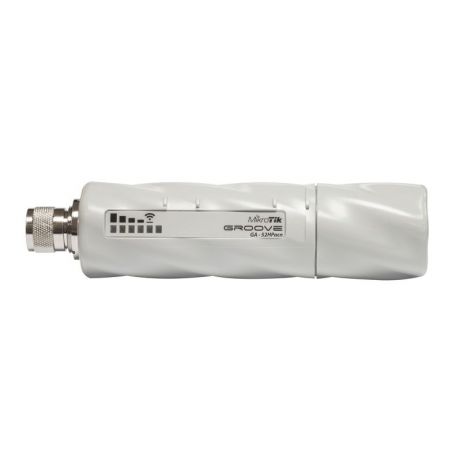

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS.

Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4GHz or 5GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high-speed wireless.

We have two versions available.

- RBGrooveG-52HPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBGrooveG-52HPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range.

Product specifications

Details
Product code RBGrooveG-52HPacn
10/100/1000 Ethernet ports 1
CPU QCA9556
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 177 x 44 x 44 mm
License level 3
Max Power consumption 5W
Number of chains 1
Operating System RouterOS
PCB temperature monitor Yes
PoE in Yes
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Supported input voltage 10 V - 30 V
Tested ambient temperature -40 +70 C
Voltage Monitor Yes
Wireless chip model QCA-9889
Wireless standards 802.11a/b/g/n/ac

Wireless specifications

2.4 GHz
  Transmit power (dBm) Receive Sensitivity Transmit power (mW)
1MBit/s 24 -97 251
11MBit/s 21 -91 126
6MBit/s 24 -93 251
54MBit/s 21 -77 126
MCS0 24 -93 251
MCS7 20 -72 100
5 GHz
  Transmit power (dBm) Receive Sensitivity Transmit power (mW)
6MBit/s 26 -93 398
54MBit/s 21 -78 126
MCS0 26 -93 398
MCS7 21 -74 126
MCS9 19 -69 79

wireless parameters may be limited in software, depending on your local regulatory limitations

Ethernet test results

RBGrooveG-52HPacn QCA9556 1G one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.2 986.1 233.1 954.8 576.7 295.3
Bridging 25 bridge filter rules 81.2 986.1 123.7 506.7 117.8 60.3
Routing none (fast path) 81.2 986.1 233.1 954.8 454.8 232.9
Routing 25 simple queues 81.2 986.1 152.6 625.0 137.2 70.2
Routing 25 ip filter rules 69.4 842.8 66.3 271.6 68.7 35.2
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RBGrooveG-52HPacn
Supplier:
MikroTik
Gigabit Ports:
Gigabit Ports: 1
Antenna Chains:
Antenna Chains: 1
CPU:
CPU: QCA9556
Wireless Chip Model:
Wireless Chip Model: QCA9889
Licence Level:
Licence Level: Level3
Voltage Monitor:
  • Voltage Monitor: Yes
Temperature sensor:
  • Temperature sensor: Yes
Wireless standards:
  • Wireless standards: 802.11ac
  • Wireless standards: 802.11a
  • Wireless standards: 802.11b
  • Wireless standards: 802.11g
  • Wireless standards: 802.11n
