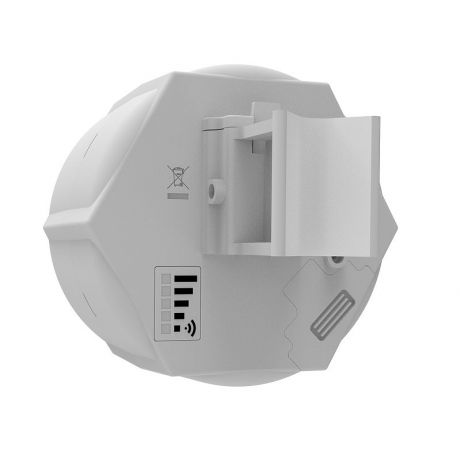

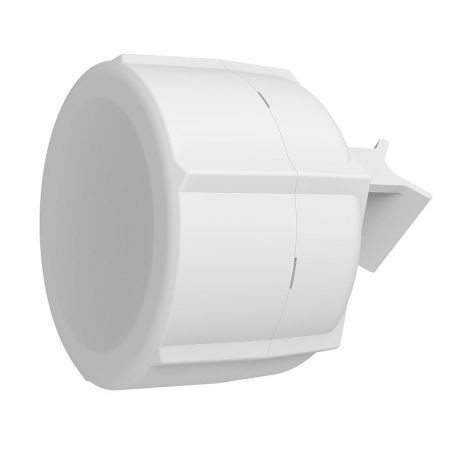

The MikroTik SXT LTE kit (product code RBSXTR&R11e-LTE) is a device for remote locations that are within cellular network coverage. However, due to its professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
In comparison with our first generation model RBSXTLTE3-7, the SXT LTE kit is powered by faster CPU and supports not only LTE with more speeds, but also 2G and 3G, as well as much wider band range.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.
The device has a built-in high-quality 2G/3G/4G/LTE Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink, as well as two Micro SIM slots for backup link.
RBSXTR&R11e-LTE includes LTE modem that supports International LTE bands 1, 2, 3, 7, 8, 20, 38 and 40.
|CPU core count||1|
|CPU nominal frequency||650 MHz|
|Dimensions||140 x 140 x 103 mm|
|Size of RAM||64 MB|
|Storage size||16 MB|
|Tested ambient temperature||-40°C .. +60°C|
|Max Power consumption||6W|
|PoE out||Passive PoE up to 57V|
|PoE in input Voltage||18-57 V|
|Number of DC inputs||1 (PoE-IN)|
|3G Category||R7 (21Mbps Downlinks, 5.76Mbps Uplink)|
|LTE Category||4 (150Mbps Downlink, 50Mbps Uplink)|
|LTE FDD bands||1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)|
|LTE TDD bands||38 (2600MHz) / 40 (2300MHz)|
|10/100 Ethernet ports||2|
|Number of SIM slots||2 Modem (Mini SIM)|
|RBSXTR&R11e-LTEr2||QCA9531 100M two port test|
|Mode||Configuration||1518 byte||512 byte||64 byte|
|Bridging||none (fast path)||16.3||197.9||47.0||192.5||297.6||152.4|
|Bridging||25 bridge filter rules||16.3||197.9||47.0||192.5||80.4||41.2|
|Routing||none (fast path)||16.3||197.9||47.0||192.5||233.1||119.3|
|Routing||25 simple queues||16.3||197.9||47.0||192.5||131.4||67.3|
|Routing||25 ip filter rules||16.3||197.9||47.0||192.5||49.1||25.1|
