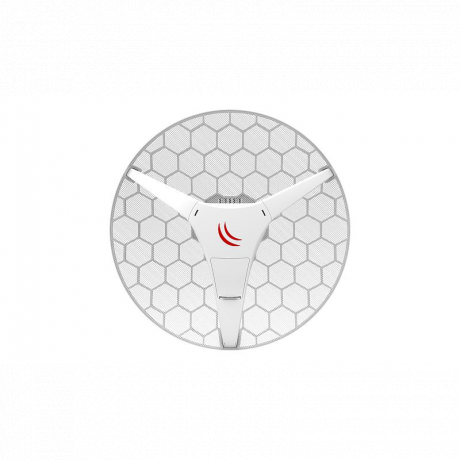

MikroTik RBLHG-5HPnD, LHG HP5, 24.5dBi, 28dBm, 600MHz, 64MB, 5GHz, 1xEthernet, L3
Please sign in so that we can notify you about a reply
Categories
- Categories
- Wi-Fi Products
- Fiber Optic
- VOIP Products
- Cameras
-
Smart Home
-
Security Systems
-
Software
Software
The LHG is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna. LHG HP5 comes with two times more output power than our regular LHG 5, and is designed to reach up to 60% longer distances.
The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.
We have two versions available.
LHG HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
LHG HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
General
| Details | |
|---|---|
| Product code | RBLHG-5HPnD |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | Ø 391 x 222 mm; |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C .. +70°C |
Powering
| Details | |
|---|---|
| Max Power consumption | 7W |
| Number of DC inputs | 1 |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
Wireless
| Details | |
|---|---|
| Antenna gain dBi for 5 GHz | 24.5 |
| Number of chains | 2 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz standards | 802.11a/n |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Wireless specifications
| 5 GHz | |||
|---|---|---|---|
| Transmit (dBm) | Receive Sensitivity | ||
| 6MBit/s | 28 | -96 | |
| 54MBit/s | 25 | -80 | |
| MCS0 | 28 | -96 | |
| MCS7 | 24 | -75 | |
Ethernet test results
| RBLHG-5HPnD | AR9344 100M 1 port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Bridging | 25 bridge filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 8.1 | 98.4 | 23.5 | 96.3 | 148.0 | 75.8 |
| Routing | 25 simple queues | 8.1 | 98.4 | 23.5 | 96.3 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 8.1 | 98.4 | 23.5 | 96.3 | 60.5 | 31.0 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RBLHG-5HPnD
Supplier:
MikroTik
