MikroTik RBLHG-2nD-XL, LHG XL 2, 21dBi, 25dBm, 650MHz, 64MB, 2.4GHz, 1xEthernet, L3

003174
730 days
Weight: 10.00 kg per item
66.13
With VAT 82.00
+
Volumetric weight: 10kg

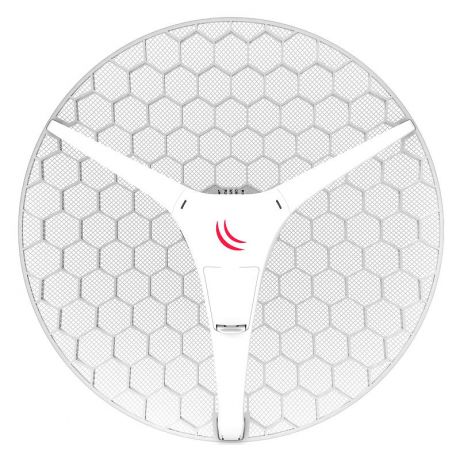

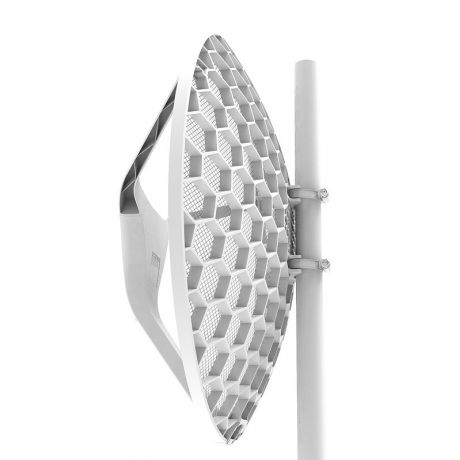

The Light Head Grid (LHG) is a compact and light wireless device with an integrated dual polarisation grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE.

LHG XL 2 is equipped with 21 dBi grid antenna for longer distances.

Specifications

Details
Product code RBLHG-2nD-XL
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions Ø 550 x 245 mm
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40 to 70° C

Powering

Details
Max Power consumption 5W
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 1 (PoE-IN)

Wireless

Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 21
Wireless 2.4 GHz chip model QCA9533

Ethernet

Details
10/100 Ethernet ports 1

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -93
6MBit/s 25 -94
54MBit/s 22 -80
MCS0 25 -94
MCS7 21 -75

Included parts

Ethernet test results

RBLHG-2nD-XL QCA9533 100M one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 173.6 88.9
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 70.9 36.3
Routing none (fast path) 8.1 98.4 23.5 96.3 160.8 82.3
Routing 25 simple queues 8.1 98.4 23.5 96.3 90.8 46.5
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 43.2 22.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RBLHG-2nD-XL
Supplier:
MikroTik
