MikroTik RBLDF-2nD, LDF 2, 10dBi, 28dBm, 650MHz, 64MB, 2.4GHz, 1xEthernet, L3

003173
730 days
Weight: 0.36 kg per item
36.29
With VAT 45.00
+
Volumetric weight: 0.36kg

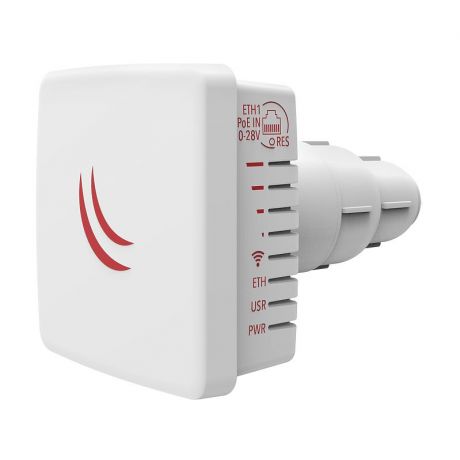

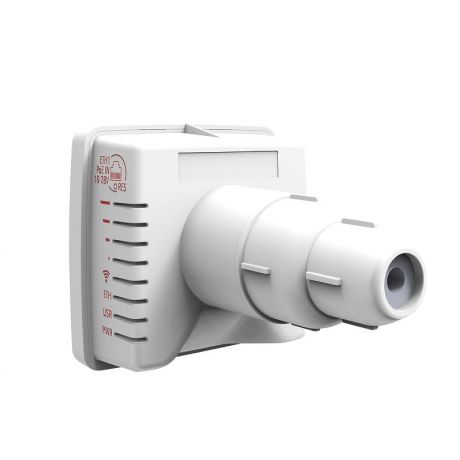

The LDF (Lite dish feed) is an outdoor wireless system with a built-in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

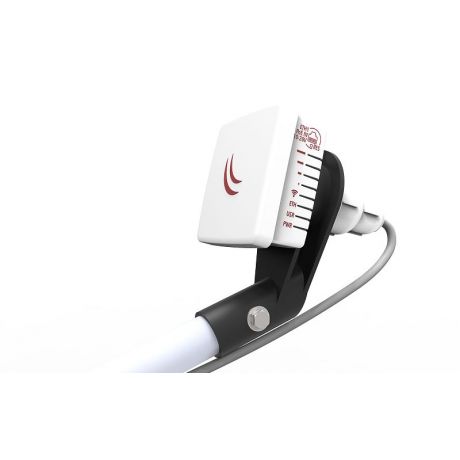

This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long-range wireless links. The offset mount is universal at 40 mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.

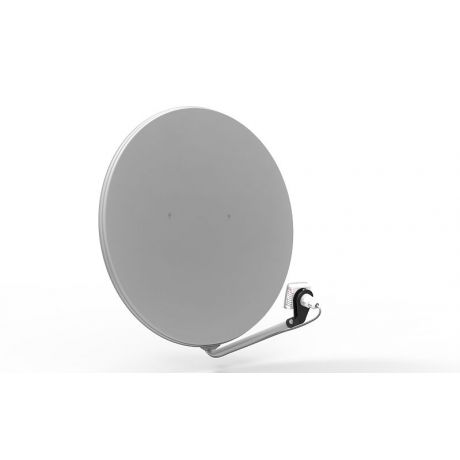

Using large enough dishes, it is possible to obtain antenna amplification of 30 dB or more. All it takes is to find a spare satellite dish with an offset mount and put your LDF device. The device comes preinstalled with RouterOS and is ready to use.

Specifications

Details
Product code RBLDF-2nD
Architecture MIPSBE
CPU QCA9533
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 84mm x 84mm x 115mm
License level 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C .. +70°C

Powering

Details
Max Power consumption 7W
PoE in Passive PoE
PoE in input Voltage 10-28 V
Number of DC inputs 1 (PoE-IN)

Wireless

Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 10
Wireless 2.4 GHz chip model QCA9533

Ethernet

Details
10/100 Ethernet ports 1

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 26 -100
11MBit/s 26 -93
6MBit/s 28 -94
54MBit/s 24 -78
MCS0 28 -94
MCS7 23 -75

Included parts

Ethernet test results

RBLDF-2nD QCA9533 100M one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 173.6 88.9
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 70.9 36.3
Routing none (fast path) 8.1 98.4 23.5 96.3 160.8 82.3
Routing 25 simple queues 8.1 98.4 23.5 96.3 90.8 46.5
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 43.2 22.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RBLDF-2nD
Supplier:
MikroTik
