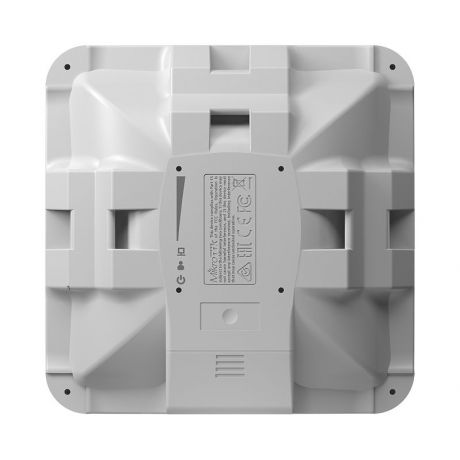

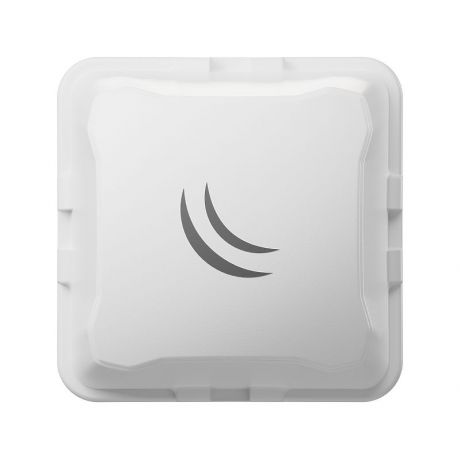

MikroTik RBCube-60ad, Cube Lite60, 60GHz, 650MHz, 64MB, 1xEthernet, L3

003520
730 days
Weight: 1.00 kg per item
59.42
With VAT 73.68
+
Volumetric weight: 1kg

60 GHz networking is no longer a privilege – with our new Cube Lite60 CPE you can run extremely cost-effective setups in situations with enterprise-level demands: shopping malls, stadiums, industrial parks, busy urban areas and so on. Same price as SXTsq, 4x the distance!

Connect up to eight of these units to a 60 GHz access point, such as our wAP 60G AP or wAP 60Gx3 AP, and enjoy smooth and stable wireless signal without interference from all the 2.4/5 GHz networks.

Cube Lite60 is designed to be less visible than a traditional dish CPE, but make no mistake – it’s still a real powerhouse. The effective point-to-point distance between Cube Lite60 units is up to 800 meters, point-to-multipoint – up to 500 meters.

No need to share frequency with your neighbors – choose 60 GHz, almost like taking a helicopter during a traffic jam!

Specifications

Details
Product code RBCube-60ad
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
License level 3
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30°C to 70°C
Suggested price $69.00


Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-28 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 5 W


Ethernet

Details
10/100 Ethernet ports 1


Certification & Approvals

Details
Certification CE/RED, FCC, IC, EAC, ROHS



Included parts

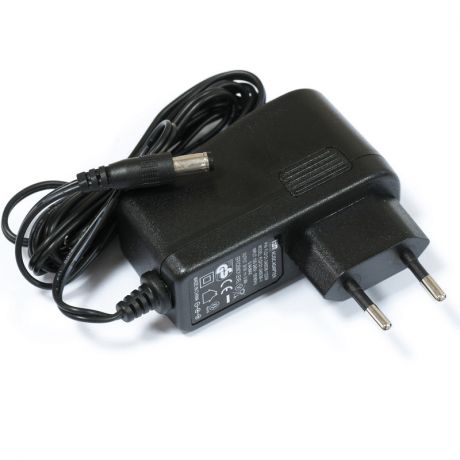

  • 24V 0.38A power adapter

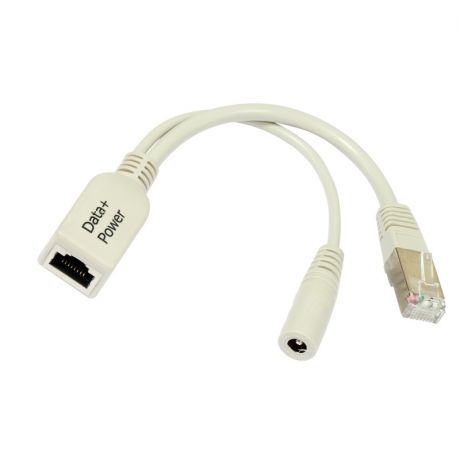

  • PoE injector

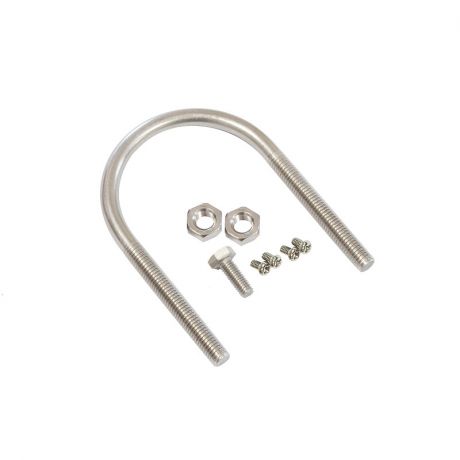

  • Fastening set for Cube

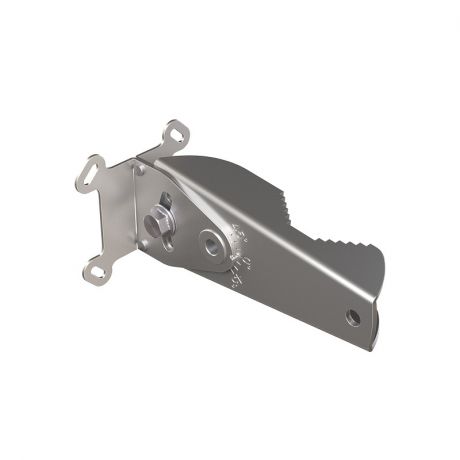

  • Cube mount

Ethernet test results

RBCube-60ad QCA9531 100M one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 173.6 88.9
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 70.9 36.3
Routing none (fast path) 8.1 98.4 23.5 96.3 160.8 82.3
Routing 25 simple queues 8.1 98.4 23.5 96.3 90.8 46.5
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 43.2 22.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results



Part Number:
RBCube-60ad
Supplier:
MikroTik
LAN 10/100 ports:
LAN 10/100 ports: 1
Licence Level:
Licence Level: Level3
