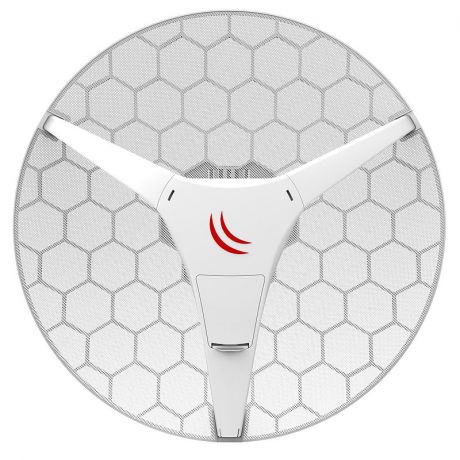

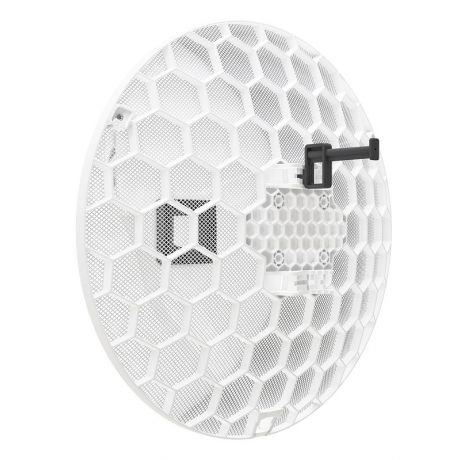

LHG 60G – a high-speed 60 GHz CPE point-to-multipoint unit, perfect solution for crowded wireless spectrum
No need to share the frequency with your neighbors and lose valuable time – LHG 60G offers a simple and effective 60 GHz solution for wireless connection where the 2 GHz and 5GHz wireless space is crowded and unreliable. Connect up to eight of these units to a 60 GHz access point, such as our wAP60G AP or wAP 60Gx3 AP, and enjoy the smooth connection with data rate up to 2 Gbps.

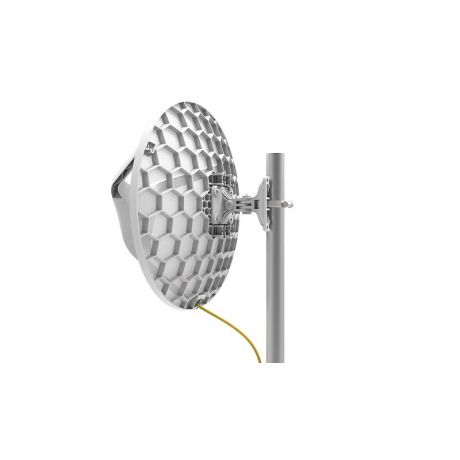

The effective point-to-point distance between two LHG 60G units is up to 1500 meters, point-to-multipoint – up to 800 meters. The grid design ensures protection against wind, it can withstand temperatures from -40 C° to +70 C°. The antenna element is built into the wireless unit – no loss on cables.

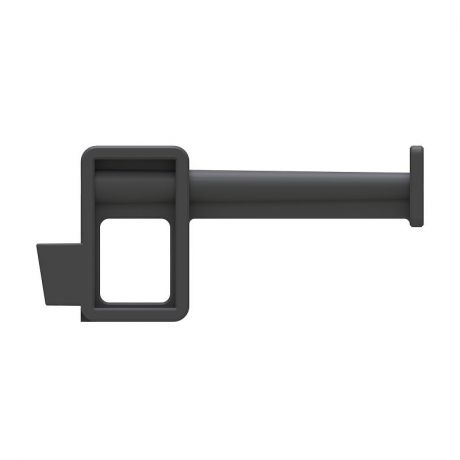

LHG 60G is shipped with an Aim tool for easy precision alignment and strong metal LHG mount. Order it today and forget about wireless interference!
|CPU core count||4|
|CPU nominal frequency||716 MHz|
|Size of RAM||256 MB|
|Storage size||16 MB|
|Tested ambient temperature||-40°C to 70°C|
|PoE in input Voltage||12-57 V|
|Number of DC inputs||1 (PoE-IN)|
|Max power consumption||7 W|
|10/100/1000 Ethernet ports||1|
|RBLHGG-60adr2||IPQ-4018 IPsec throughput|
|Mode||Configuration||1400 byte||512 byte||64 byte|
|Single tunnel||AES-128-CBC + SHA1||37.9||424.5||59||241.7||61.6||31.5|
|256 tunnels||AES-128-CBC + SHA1||36||403.2||38.5||157.7||39.8||20.4|
|256 tunnels||AES-128-CBC + SHA256||36||403.2||38.5||157.7||39.8||20.4|
|256 tunnels||AES-256-CBC + SHA1||34.4||385.3||37.9||155.2||39.8||20.4|
|256 tunnels||AES-256-CBC + SHA256||34.4||385.3||37.9||155.2||39.8||20.4|
