IgniteNet MetroLinq 60 PRO, 2.5Gbps, outdoor unit 60GHz PTP 42dBi + backup 5GHz, 2x22dBi (price per piece), no holder

Ask a question
730 days
Weight: 3.50 kg per item
755.00

With VAT 936.20
+
Volumetric weight: 3.5kg

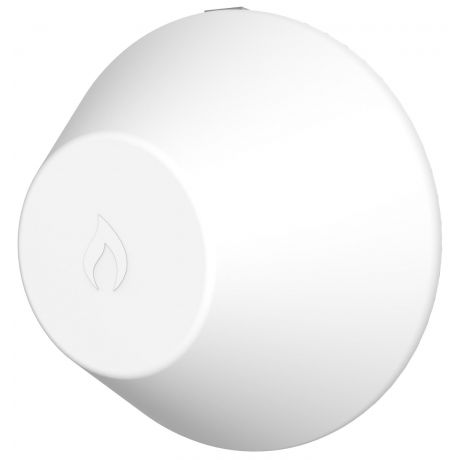

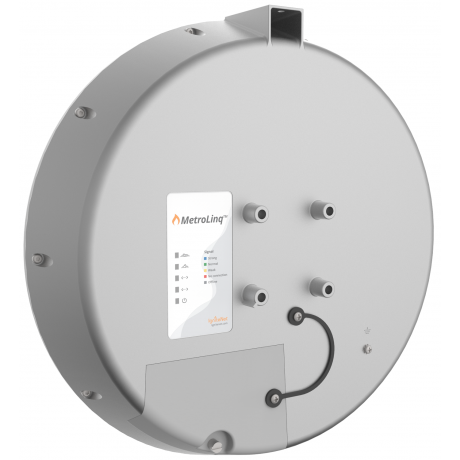

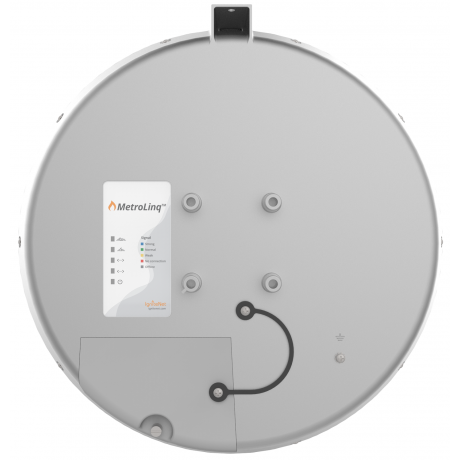

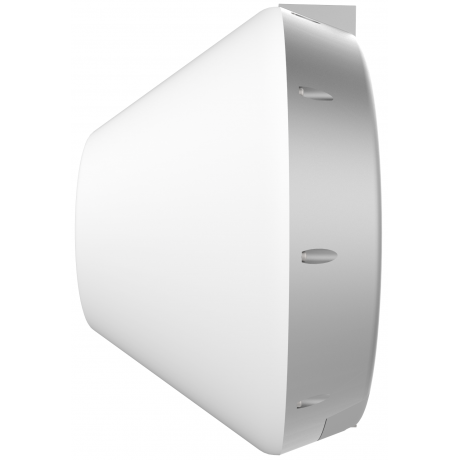

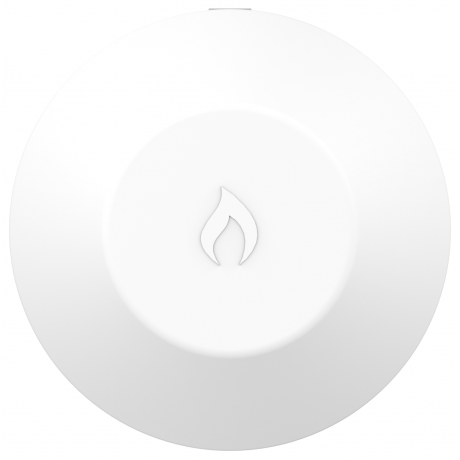

IgniteNetTM’s MetroLinq™ 2.5 - 60 is the world’s first cost-effective high capacity 60GHz PTP radio enabling high performance, interference-free connections worldwide. The MetroLinq™ 2.5 - 60 has an added advantage of being license-free in most markets globally, allowing ultra fast deployment and without the hassle of other frequency bands requiring a license. The MetroLinq™ also includes a second 5GHz radio which can be configured as PtP (backup) to provide integrated redundancy without and additional hardware or complexity.

Key Features and Benefits

  • Inteference-Free & Unlicensed Band
    The IgniteNet™ MetroLinq™ 2.5 - 60 offers unprecedented performance - combining both the benefits of unlicensed band operation with no interference!
  • Dual Band 60GHz & 5GHz Operation
    The MetroLinq™ 2.5 - 60 includes a second 5GHz radio which can be configured as a backup to the 60GHz to provide automatic failover during adverse conditions. This allows links to be extended further without effecting link availability
  • Powerful, Flexible Configuration
    The MetroLinq™ Base Station can operate either as a stand-alone device or as a coordinated, cloud-managed device, easily meeting the requirements of any installation
  • Robust Weather-Resistant Design
    The MetroLinq™ Base Station features a hybrid metal/plastic design built to withstand the harshest environments including precipitation, hot/cold weather and high/low humidities

















Package contains

  • Device
  • PoE power adapter 48V / 0.5A
  • Power cord







Manuals

Technical parameters

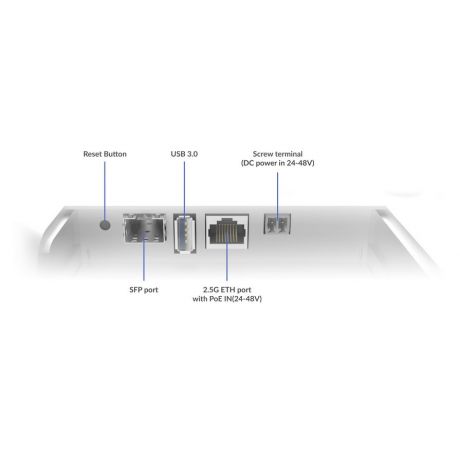

Connectors and Interfaces

LAN speed:  (1) 100/1000/2500Mbps
Optical interfaces:  (1) 1000Mbps

Physical characteristics

Radom:  Yes
Operating temperature [°C]:  -30 up to 55
Weight [g]:  3500
Depth [mm]:  200
Width [mm]:  350
Height [mm]:  350

Power

Power over Ethernet:  24 .. 48V DC
Power type:  PoE, DC terminal

Software

Default IP address:  192.168.1.20, Dynamic from DHCP
Default login and password:  root / admin123

Wireless features

Sensitivity [dBm]:  -74
Channel bandwidth [MHz]:  2000
Transmission speed - WiFi 5GHz [Mb/s]:  866
Transmission speed - 60GHz [Mb/s]:  4600
Output power 60GHz [dBm]:  14
Azimuth beam width (-6dB) [°]:  1, 1
Antenna gain [dBi]:  42
Part Number:
ML2.5-60-35-EU
Availability:
available for order
Supplier:
IgniteNet
