IgniteNet G-Linq Outdoor GL-O-1GE-1C-EU

Ask a question
730 days
Weight: 0.49 kg per item
86.40

With VAT 107.14
+
Volumetric weight: 0.49kg
Available with order
Delivery on 4 - 7 Days

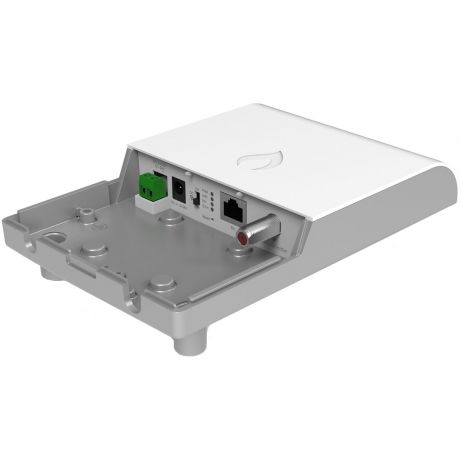

The IgniteNet GLinq Outdoor Converter is a powerful ethernet over coax converter that enables service providers to deliver gigabit speeds via existing and new coax cabling infrastructure. The GLinq system is ideal for both providing bandwidth to buildings with outdoor coax as well as delivering gigabit speeds within buildings using existing coax cabling infrastructure. Operators can already easily deliver gigabit speeds to customers wirelessly using IgniteNet’s 60GHz MetroLinq products – now they can also easily share that delivered capacity throughout the whole building. The unique GLinq + MetroLinq combination provides a clean, simple, fast installation of gigabit connections. GLinq is available in two different models – an indoor and an outdoor version.

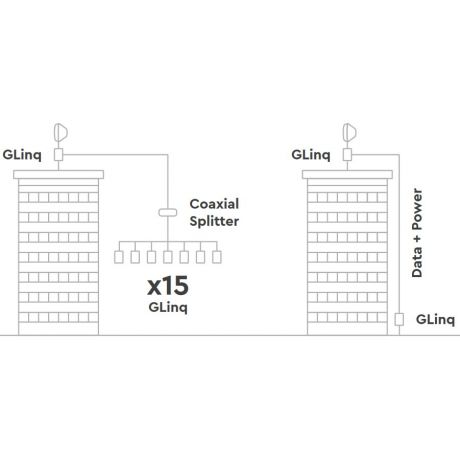

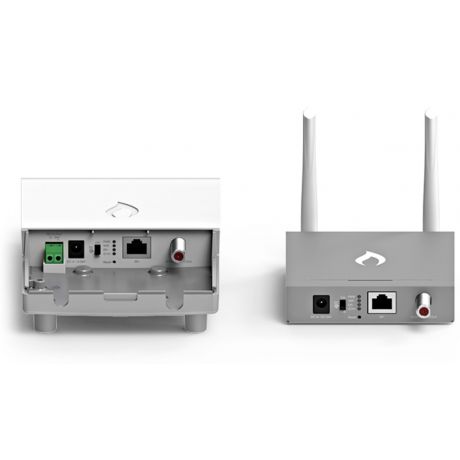

Both the indoor and the outdoor models have an integrated 2.4GHz radio which can provide Wi-Fi connectivity as well as easy setup and management using the same device. Up to 15 client converters can be connected to each GLinq master device (software configuration) for sharing gigabit connectivity throughout the building using coaxial splitters. The GLinq also includes a DC jack and/or DC terminal block which allows each client to provide reverse power through the coax system and can be used to power the remote rooftop converter(s) and backhaul using the same coax system for both data and power. This eliminates the need for a separate power circuit to be run to the rooftop to power the system.

Manuals

Technical parameters

Connectors and Interfaces

LAN speed:  (1) 10/100/1000Mbps
Gigabit LAN:  Yes

Physical characteristics

Operating temperature [°C]:  -40 up to 70
Weight [g]:  490
Depth [mm]:  185
Width [mm]:  119
Height [mm]:  44

Power

Power type:  DC connector, DC terminal
Max. power consumption [W]:  6,5
Power via connector/terminal:  12 .. 54V DC

Software

Default login and password:  root / admin123

Wireless features

Transmission speed - WiFi 2.4GHz [Mb/s]:  300
Tx power 2.4GHz [dBm]:  25
Type of antenna:  Built-in
Internal antennas:  2
Antenna gain [dBi]:  2
Part Number:
GL-O-1GE-1C-EU
Availability:
available for order
Supplier:
IgniteNet
