RF Elements StationBox XL 2.4GHz 14dBi Antenna MiMo Panel ( SBX-XL-2-14 )

730 days
Weight: 2.16 kg per item
33.01
With VAT 40.93
+
Volumetric weight: 2.16kg
Available with order
Delivery on 4 - 7 Days

StationBox XL 2,4GHz 14dBi antenna MiMo Panel Antenna

StationBox® Classic is universal enclosure designed for outdoor installations. Main advantages are universality and applicability for different kind of devices and antennas from various suppliers. After mounting all components look like one entity. StationBox® Classic is made of durable ABS plastic and it consists only of 4 body parts. Our outdoor enclosure is provided with compact mounting bracket. In addition, there is a possibility of using NanoBracket™ for the installation which enables to adjust the enclosure to any direction in range of 90°. Design is very simple, with emphasis on functionality.

The main purpose of this product is not only the installation of the device but also the simplicity of sequential service. The StationBox® Classic is ingenious solution for outdoor installations of the antennas and devices that is indicated by its extraordinary features including the long lifetime.

Pigtail sold separately.

Carrier Class CPE Enclosure

StationBox® XL CARRIER CLASS is an aluminum outdoor CPE antenna enclosure with IP65 environmental resistance rating and a built-in high-gain dual polarization antenna. We offer a 19 dBi 5 GHz model and a 14 dBi 2.4 GHz model.

19dBi 5GHz Dual Polarization Antenna

StationBox® XL CARRIER CLASS features built-in dual polarization antennas with 19dBi gain in 5GHz or 14dBi gain in 2.4GHz. A new and innovative antenna design is addressing customer requirements for increased gain and reduced side lobes. To further eliminate RF losses, the enclosure features semi-flex waveguides with MMCX connectors.

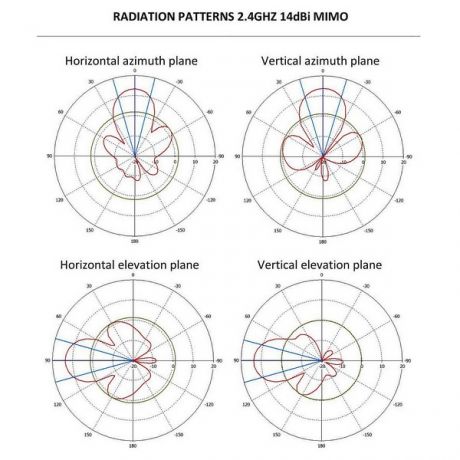

xlcc patterns

Made For MikroTikTM

StationBox® XL CARRIER CLASS is designed for a seamless installation of MikroTikTM RouterBoards RB92x, RB91x, RB71x, RB41x, and RB433. The installation of the board requires no tools and takes only a couple of seconds. The LEDs on the RouterBoard remain visible.

Aluminium Enclosure with IP65

StationBox® XL CARRIER CLASS meets the requirements of the IP65 environmental resistance rating. The enclosure and the base of NanoBracket® are made of die cast aluminium, all hardware is made of stainless steel, and the radome and the plastic parts are made of high quality outdoor-rated ABS plastic. The ethernet connector is outdoor-rated and water resistant. Silicone gaskets are applied.

IP65

Integrated NanoBracket®

StationBox® XL CARRIER CLASS comes with a revolutionary integrated mounting solution. The enclosure features RF elements® NanoBracket®, a 3-axis positioning system with a ball hinge that allows to adjust the position of the CPE in elevation, azimuth, and rotation. Thanks to this precise level of adjustability, you are able to achieve the best possible link performance and to minimize polarization missmatch loss.



Part Number:
SBX-XL-2-14
Supplier:
RF Elements
