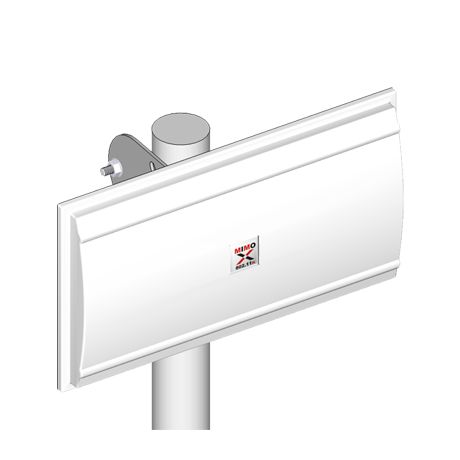

Interline 2.4GHz Panel 14dBi MIMO

207-0062
730 days
Weight: 1.00 kg per item
41.15
With VAT 51.03
+
Volumetric weight: 1kg

antenna overview

Directional antenna for base stations and client terminals in the MIMO technology prepared to work with radio equipment operating in the standard 802.11n that use MIMO technology. The antenna has two ports, is relatively lightweight and compact design saves space on the mast.

key features

furthermore





technical specification

Electrical

product code INT-PAN-14/24-MIMO
frequency 2400-2500MHz
gain 14dBi
VSWR (max) 1.7
polarization horizontal or vertical
beamwidth (-3dB): horizontal 30°
beamwidth (-3dB): vertical 30°
front to back ratio > 20dB
cross polarization > 21dB
port to port separation > 18dB
impedance 50Ω

Mechanical

dimensions (excl. mounting) 191x340x25mm
weight (incl. mounting) 0.92kg
connector N female
mounting diameter ø 38...51mm
wind load (170km/h) 87 N
technical specification PDF
updated: 13.09.2010

technical specificationPDF





List of channels and frequency

Standard Channel number Frequency
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 1 2412MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 2 2417MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 3 2422MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 4 2427MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 5 2432MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 6 2437MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 7 2442MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 8 2447MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 9 2452MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 10 2457MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 11 2462MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 12 2467MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 13 2472MHz
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n 14 2484MHz
