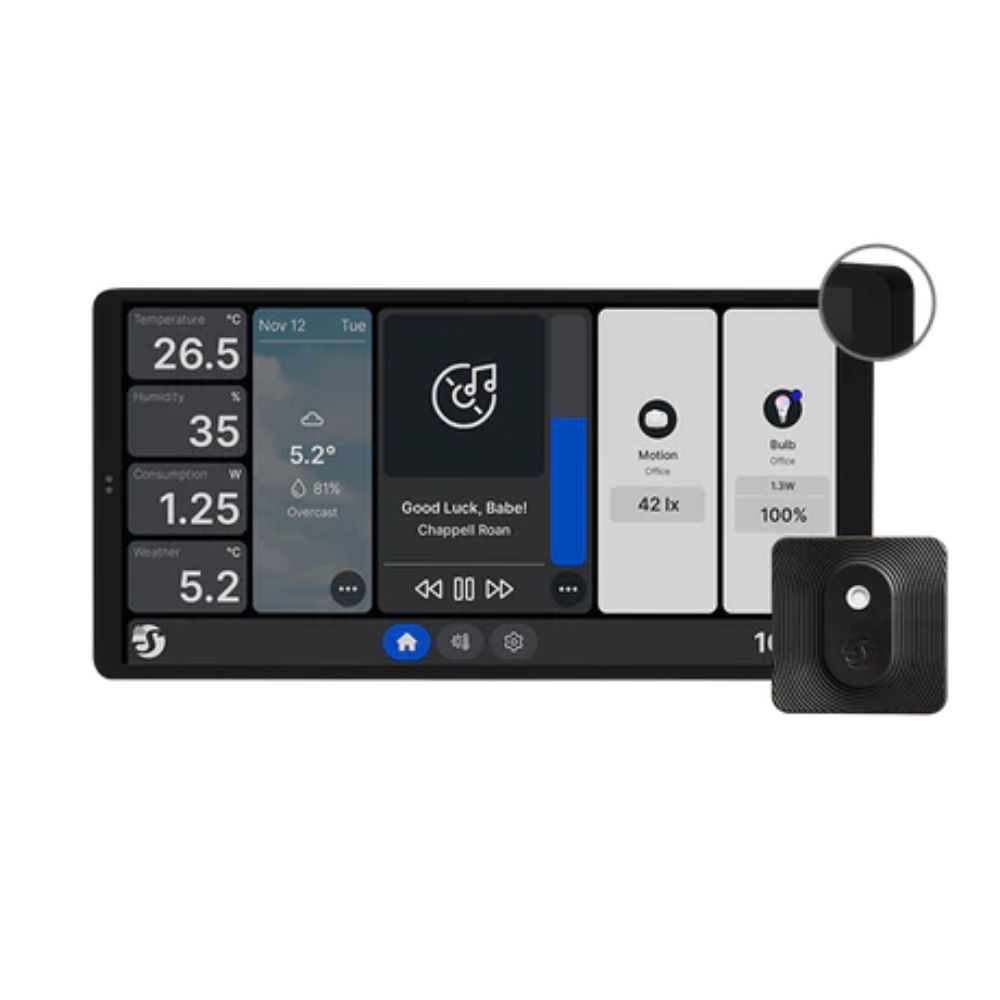

Shelly Wall Display X2 (black frame) + BLU H&T Black

The Shelly Wall Display X2 is a minimalist and elegant wall-mounted smart control panel with black frame that provides centralized access to various smart devices throughout your home. Its large 6.95-inch color touchscreen is double sized compared to Wall Display, and it offers intuitive operation, and the clean interface can be easily customized to suit individual needs.

Thanks to its built-in sensors, the device not only allows control but also monitors the environment—automatically adjusting connected devices based on temperature, humidity, or lighting conditions.

This device is an ideal solution if you're looking for a stylish, flush-mounted unit that can control lighting, heating, blinds, or even energy consumption. With its integrated 5 A relay, the panel serves as both a display and an active controller, capable of directly switching a circuit. Wi-Fi and Bluetooth connectivity ensure flexible access and simple setup without the need for a central hub.

It can be used with the Shelly app directly or integrated into Home Assistant systems, making it a perfect choice for a smart, customizable, and future-proof smart home.

Key Features

• 6.95-inch 5-point capacitive color touchscreen for easy navigation and a customizable home screen
• Built-in 5 A relay for device control (neutral wire required)
• Built-in temperature, humidity, and light sensors for environmental monitoring and automation
• Energy monitoring for tracking the power usage of all Shelly PM devices in a selected room
• Wi-Fi and Bluetooth connectivity, including Bluetooth gateway function, for flexible setup and operation without a central hub
• Customizable home screen with support for up to 25 devices and quick access to key functions

Use Cases

• Remote control and automation of electrical devices such as lighting, fans, or other appliances
• Thermostat functionality to set heating zones based on current temperature, ensuring indoor comfort
• Improved energy efficiency by identifying high-consumption devices through power monitoring
• Monitoring and controlling devices from a single interface

Smart Thermostat Replacement
The Shelly Wall Display can replace your existing thermostats and provides an intuitive interface for easily managing, monitoring, and optimizing heating or cooling. For more accurate readings, the use of an external temperature sensor is recommended. For loads greater than 5 A, a contactor should be used to control larger appliances.

Supported Protocols:

• Wi-Fi (802.11 b/g/n)
• Bleutooth 5.0 - for pairing and as Bluetooth hub (receiver) for BT sensors and remote controllers
• MQTT supported
• Webhook supported

Built-in sensors:

• temperature sensor,
• humidity sensor,
• light sensor,
• proximity sensor,
• microphone,
• accelerometer (G-sensor)

Wiring Terminals and Their Functions

• L (Line): Connect the live wire (230V AC) to supply power to the device
• N (Neutral): Connect the neutral wire; both live and neutral are required for operation
• O (Output): Switched output controlled by the built-in 5 A relay (for lights, fans, etc.)
• SW (Switch input): Optional external push button or switch input to manually control the relay; works with live voltage and can branch from the Line terminal

Technical Specifications

• Dimensions (H x W x D): 87 x 178 x 33 mm
• Weight: 256 g
• Touchscreen: 5-point capacitive display
• Mounting: Fits into a standard wall box
• Materials: Plastic, aluminum, glass
• Color: black frame
• Built-in sensors: Light sensor, temperature sensor, humidity sensor, proximity sensor, microphone, accelerometer
• Speaker: 0.8 W
• Operating temperature: -20 °C to 40 °C
• Humidity range: 30% to 70% RH
• Power supply: 230 VAC, 50/60 Hz
• Power consumption: Less than 1 W
• Maximum switching voltage: 230 VAC
• Maximum switching current: 5 A
• Wi-Fi protocol: 802.11 b/g/n
• Bluetooth protocol: 5.0

Integration and Compatibility
The Shelly Wall Display X2 is fully compatible with the Shelly Smart Control app for mobile management, as well as with Home Assistant for advanced automation and local control. It integrates seamlessly with other Shelly devices, including those with power monitoring (such as the Shelly PM series).

With both Wi-Fi and Bluetooth capabilities, including Bluetooth gateway support, it fits effortlessly into any modern smart home system—no hub required.
