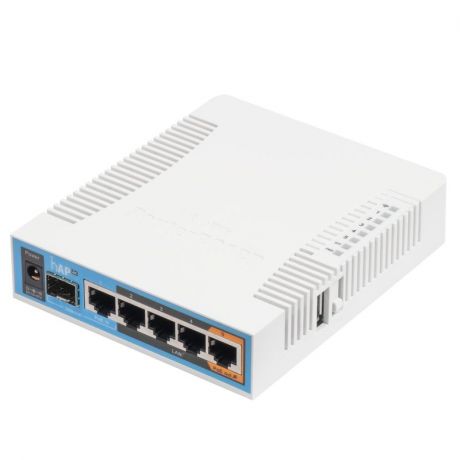

MikroTik Routerboard RB962UiGS-5HacT2HnT, hAP ac, 2.5dBi, 29dBm @ 2.4GHz, 2dBi, 28dBm @ 5GHz, 720MHz, 128MB, 5xGigabit, 1xSFP, PoE out, USB, L4

002368
730 days
Weight: 1.00 kg per item
104.84
With VAT 130.00
+
Volumetric weight: 1kg

The hAP ac is our most universal home or office wireless device. It is a dual band device with Gigabit ports that allow the full advantages of 802.11ac technology speed, while maintaining compatibility with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.

The omnidirectional antennas allow to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for the mobile devices in your home, office or public location.

Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and a SFP cage, for connecting active or passive optical network modules.

We have two versions available.
- RB962UiGS-5HacT2HnT-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB962UiGS-5HacT2HnT (International) supports 2412-2484MHz and 5150MHz-5875MHz range.



Details
Product code RB962UiGS-5HacT2HnT
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100/1000 Ethernet ports 5
Wireless chip model QCA9880
Wireless standards 802.11a/n/ac
Secondary wireless chip model QCA9558
Number of USB ports 1
Power Jack 1
Supported input voltage 11 V - 57 V
PoE out Yes
PoE in Yes
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 114 x 137 x 29mm
Operating System RouterOS
License level 4
Antenna gain DBI 2
CPU QCA9558
Max Power consumption 17W
SFP ports 1
USB slot type USB type A
Number of chains 3
Storage type FLASH
Storage size 16 MB

Wireless specifications

5 GHz
 TXRX
6MBit/s 28 -96
54MBit/s 25 -81
MCS0 28 -96
MCS7 24 -77
MCS9 21 -72

wireless parameters may be limited in software, depending on your local regulatory limitations


RB962UiGS-5HacT2HnT QCA9558 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 161.9 1,966.1 345.5 1,415.2 435.6 223.0
Bridging 25 bridge filter rules 125.5 1,524.1 126.5 518.1 128.8 65.9
Routing none (fast path) 161.9 1,966.1 334.2 1,368.9 397.9 203.7
Routing 25 simple queues 161.9 1,966.1 183.9 753.3 203.3 104.1
Routing 25 ip filter rules 78.1 948.4 77.8 318.7 77.5 39.7
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RB962UiGS-5HacT2HnT
Supplier:
MikroTik
LAN 10/100 ports:
LAN 10/100 ports: none
Gigabit Ports:
Gigabit Ports: 5
SFP 1G Ports:
SFP 1G Ports: 1
SFP 10G Ports:
SFP 10G Ports:none
MiniPCI:
MiniPCI: none
Antenna Chains:
Antenna Chains: 3
CPU:
CPU: QCA9558
Wireless Chip Model:
Wireless Chip Model: QCA9880/QCA9558
Architecture:
Architecture: MIPS-BE
Licence Level:
Licence Level: Level4
USB:
  • USB: Yes
Memory cards:
  • Memory cards: No
Integrated Wireless:
  • Integrated Wireless: Yes
Temperature sensor:
  • Temperature sensor: Yes
Serial Port:
  • Serial Port: Yes
PoE out:
  • PoE out: Yes
Wireless standards:
  • Wireless standards: 802.11ac
  • Wireless standards: 802.11a
  • Wireless standards: 802.11b
  • Wireless standards: 802.11g
  • Wireless standards: 802.11n
