MikroTik RB931-2nD, hAP mini, 1.5dBi, 22dBm, 650MHz, 32MB, 2.4GHz, 3xEthernet, L4

002848
730 days
Weight: 0.90 kg per item
20.16
With VAT 25.00
+
Volumetric weight: 0.9kg

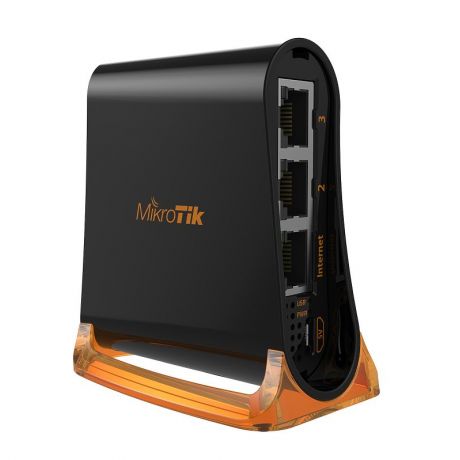

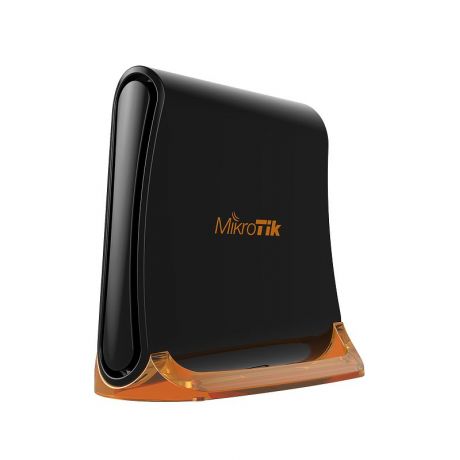

The hAP mini is a small 2GHz wireless access point for home or small offices. It has three ports, which are configured as one Internet port and two LAN ports, but can be reconfigured as desired, using the powerful RouterOS configuration options.

The powerful 650MHz CPU gives you full access to the wide variety of features provided by the versatile RouterOS operating system, but if all you want is a simple access point - it is already configured out of the box. You simply need to open it’s web configuration page and provide a password for it.

Details
Product code RB931-2nD
CPU nominal frequency 650 MHz
CPU core count 1
Size of RAM 32 MB
10/100 Ethernet ports 3
Wireless chip model QCA9533
Wireless standards 802.11b/g/n
Power Jack 1
Supported input voltage 5 V - 5 V
Dimensions 48 x 78 x 81mm
Operating System RouterOS
License level 4
Antenna gain 1.5
CPU QCA9533
Max Power consumption 3.5W
Number of chains 2
Storage type FLASH
Storage size 16 MB

Ethernet test results

RB931-2nD QCA9533 100M three port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 24.4 296.3 70.5 288.8 395.0 202.2
Bridging 25 bridge filter rules 24.4 296.3 70.5 288.8 85.8 43.9
Routing none (fast path) 24.4 296.3 70.5 288.8 386.6 197.9
Routing 25 simple queues 24.4 296.3 64.9 265.8 151.6 77.6
Routing 25 ip filter rules 24.4 296.3 62.3 255.2 61.4 31.4
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
Part Number:
RB931-2nD
Supplier:
MikroTik
