MikroTik Routerboard 911G-5HPnD ( Level 3 )

730 ημέρες
Βάρος: 0.20 kg ανά τεμάχιο
001568
38.50
(47.74  Με ΦΠΑ)

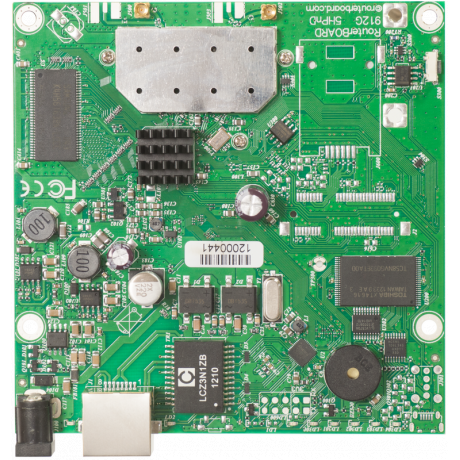

The RB911G-5HPnD is a small wireless router with an integrated 5Ghz high power wireless card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds. The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on...
+

The RB911G-5HPnD is a small wireless router with an integrated 5Ghz high power wireless card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the
MMCX ports.

Details
Product code RB911G-5HPnD
CPU nominal frequency 600 MHz
CPU core count 1
Size of RAM 64 MB
Architecture MIPS-BE
10/100 Ethernet ports 0
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 0
Wireless chip model AR9342-BL1A
Wireless standards 802.11a/n
Number of USB ports 0
Power Jack 1
Supported input voltage 8 V - 30 V
PoE in Yes
PoE out No
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 105x105mm
Operating System RouterOS
Operating temperature range -40°C .. +70°C tested
License level 3
Antenna gain DBI No
Current Monitor No
CPU AR9342-BL1A
Max Power consumption 11W at 24V
SFP ports 0
SFP+ ports 0
Number of chains 2
Serial port None
RB911G-5HPnD AR9342 1G 1 port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.0 983.7 232.0 950.3 269.6 138.0
Bridging 25 bridge filter rules 81.0 983.7 86.0 352.3 87.6 44.9
Routing none (fast path) 81.0 983.7 210.0 860.2 226.9 116.2
Routing 25 simple queues 81.0 983.7 103.9 425.6 106.6 54.6
Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
  4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
