Retractable patch cords for perfect length patching
Prevents Cable Spaghetti
Keeps network cabinets maintainable, even over years
Saves space
Easy labeling, identification and tracing of patch cords
Stores unused patch cords right in the cabinet
Faster installation & maintenance

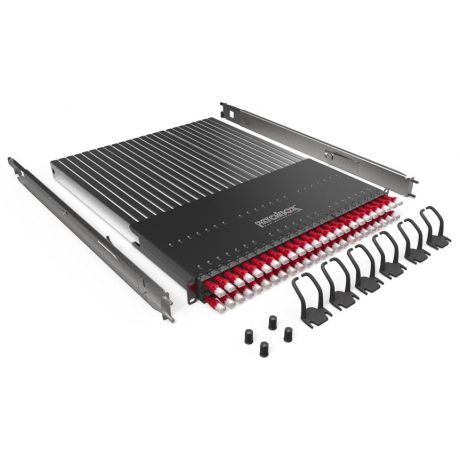

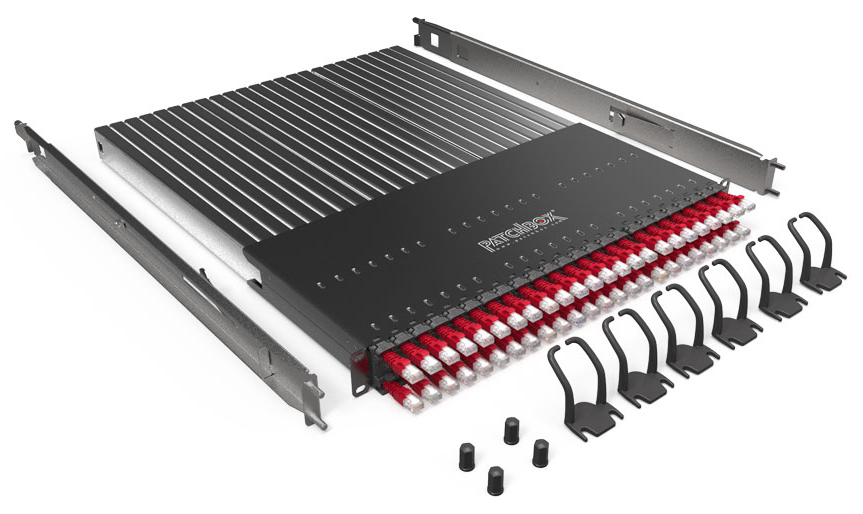

24pcs. Cassettes with Fluke tested Cat. 6 patch cords
1pcs. PATCHBOX® Plus+ Frame
2pcs. adjustable Mounting Rails incl. HEX-Nuts
6pcs. Patchcatch (0RU Cable Management)
2pcs. DIN A5 tear off labels (96 labels)
UTP Cable: Cat. 6 UTP (unshielded twisted pair), 250MHz, AWG30, 100% stranded copper, PVC, 10Gbit ready, PoE ready
STP Cable: Cat. 6 STP (shielded twisted pair), 250MHz, AWG36, 100% stranded copper, PVC, 10Gbit ready, PoE ready
Connector: RJ45, Pins Gold plated, Molded Snagless Boot
Total Cable Length: 1.7m fully retractable (covers 26RU)
Frame: RAL9005 Powder Coated Steel
Cassette Profiles: Chrome Steel, laser-welded
All Plastic Parts: Polyoxymethylene (POM), black
Mounting Rails: Stainless Steel, 500mm to 850mm from 19" rail to 19" rail
Operating Temperature Range: +10°C to +45°C
Ambient Humidity (non-condensing): 10% to 95%
PATCHBOX® Plus+ (W x D x H): 482.60mm (19”) x 600mm x 43.69mm (1RU)
Pulling Cycles: 300+
5 Years Warranty
Packaging (W x D x H): 590mm x 790mm x 50mm
Weight: 12kg
HS-Code: 8544 4210
Country of Origin: Hungary
